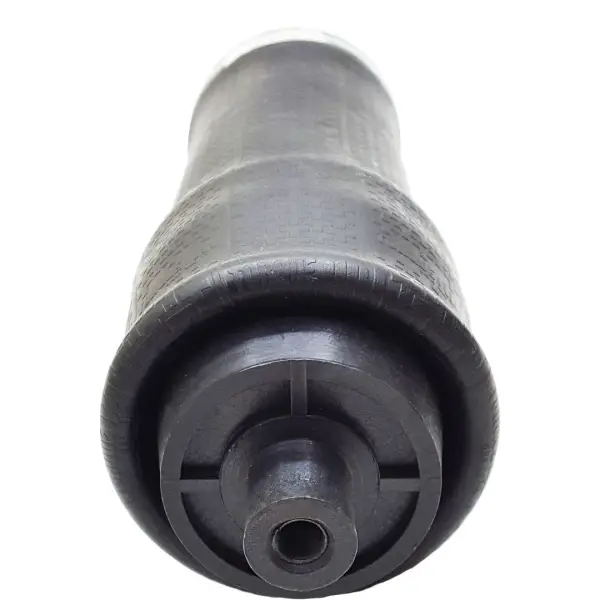

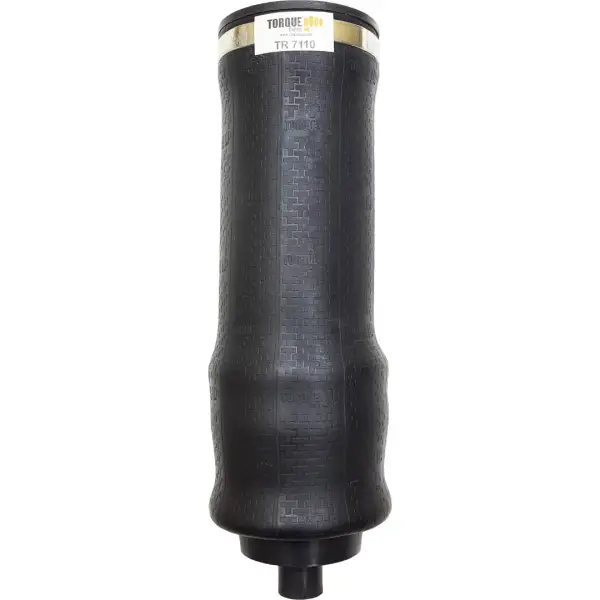

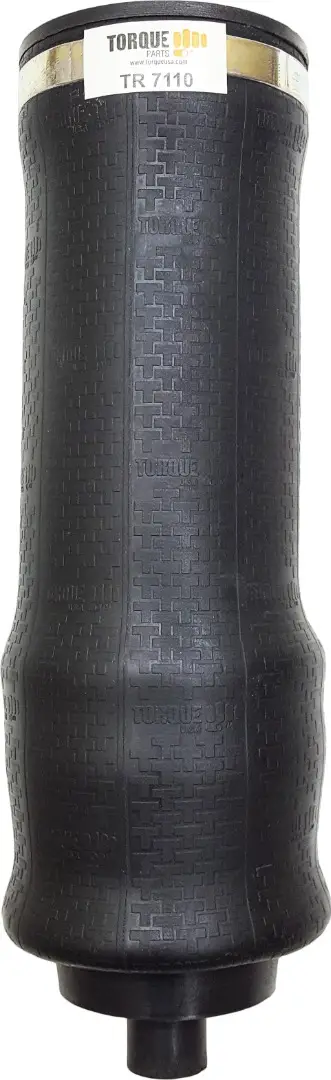

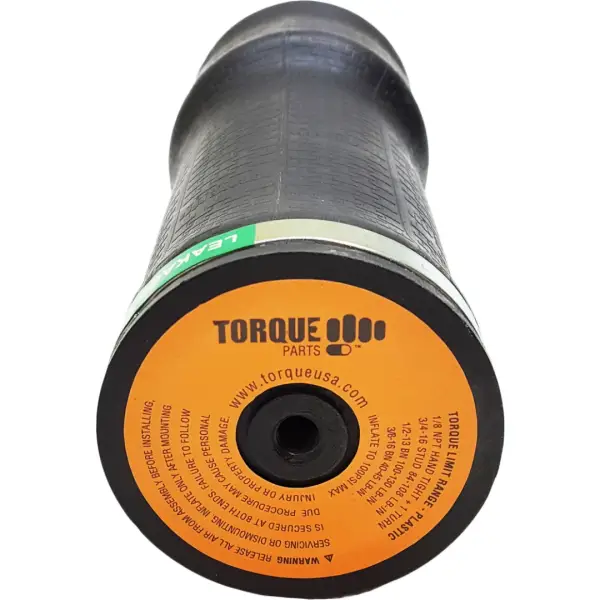

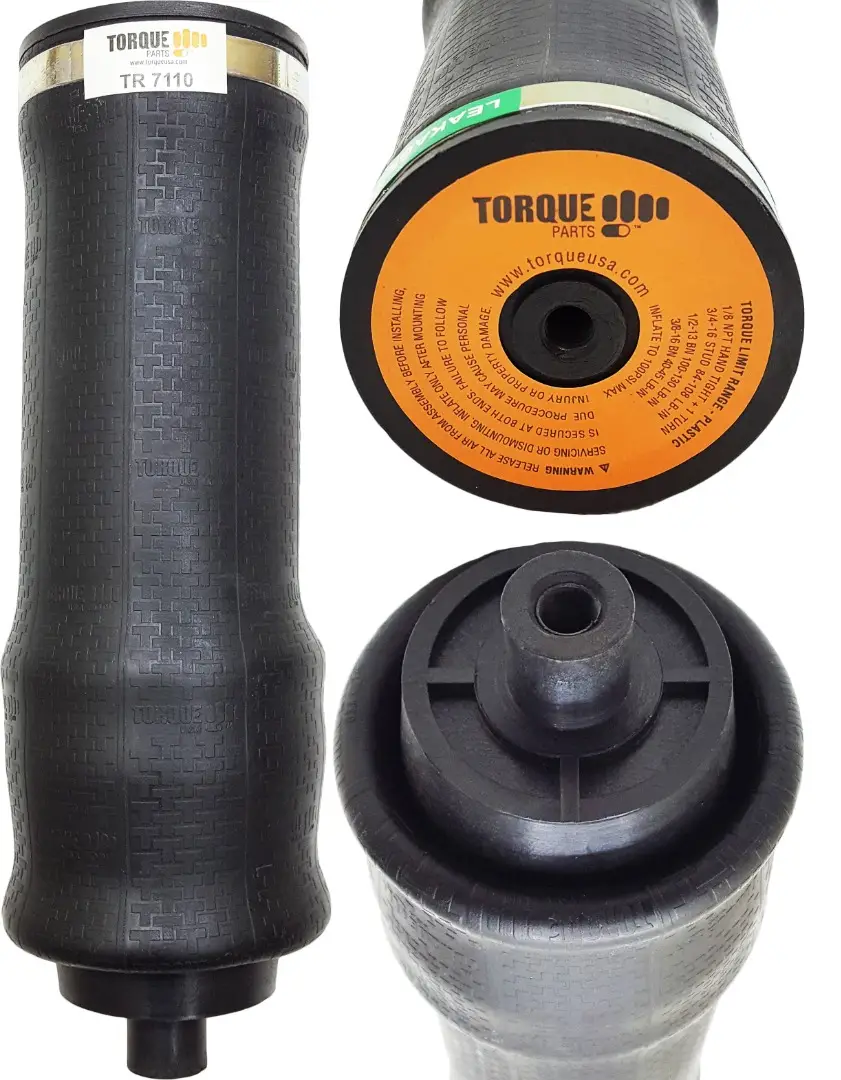

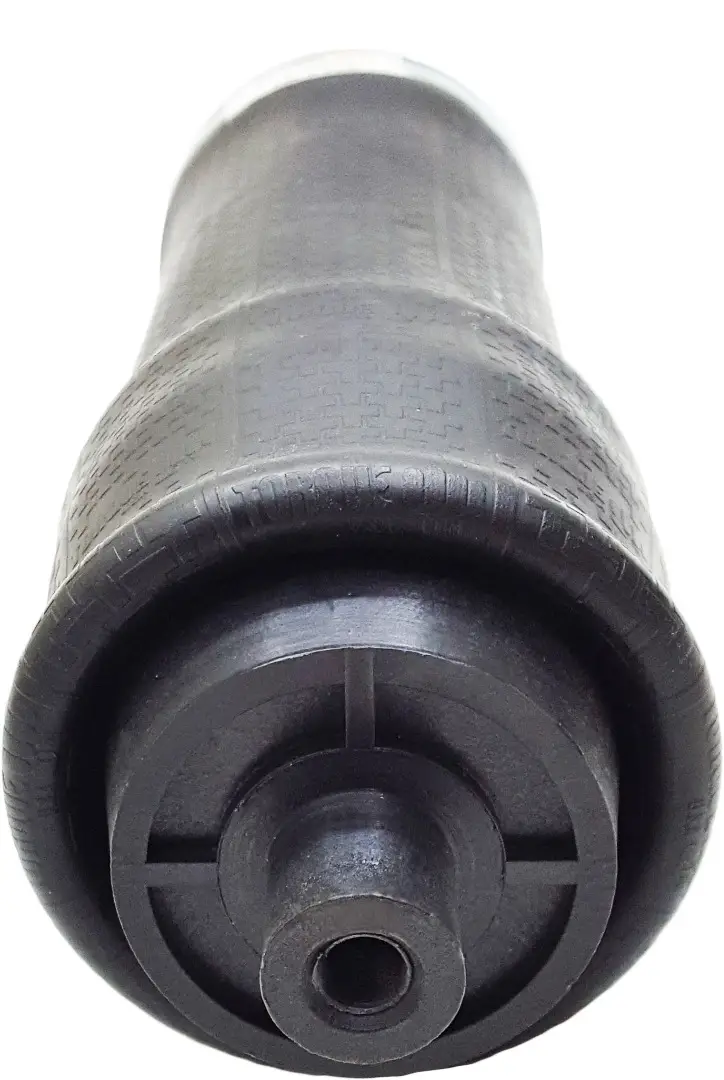

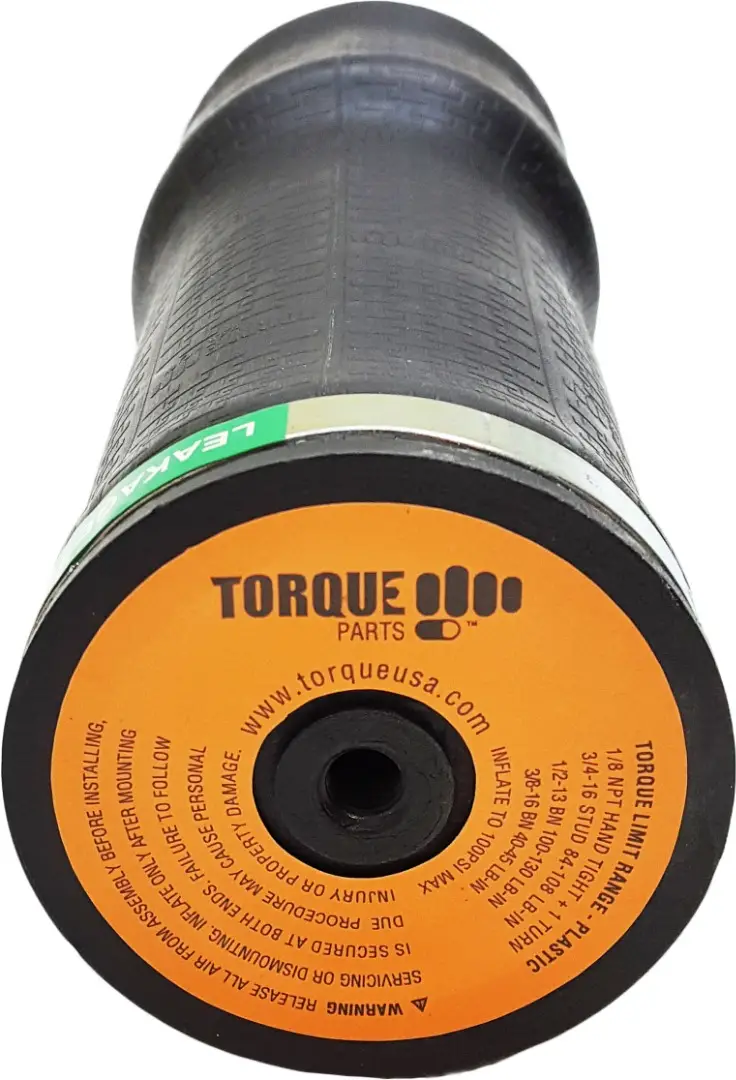

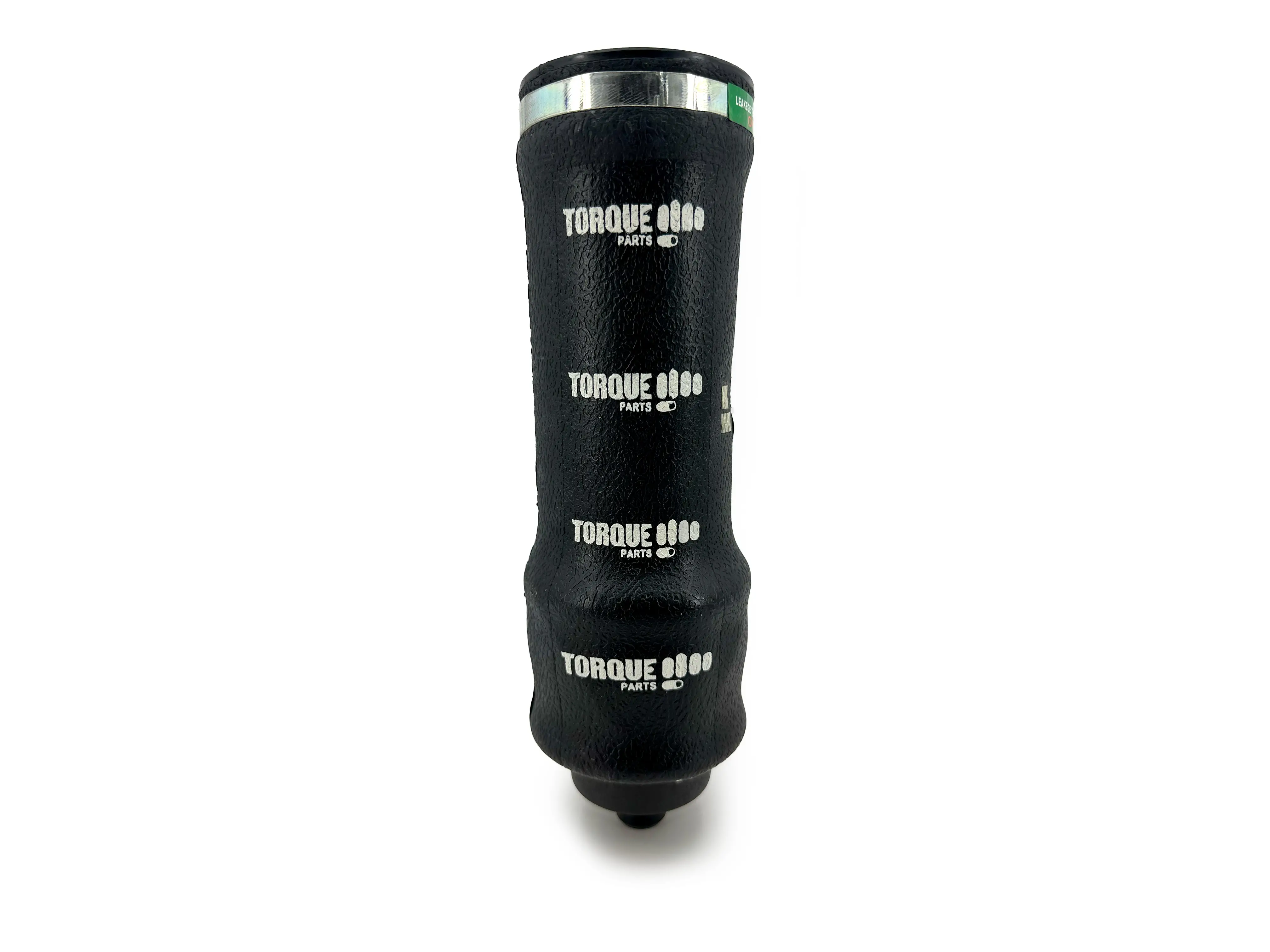

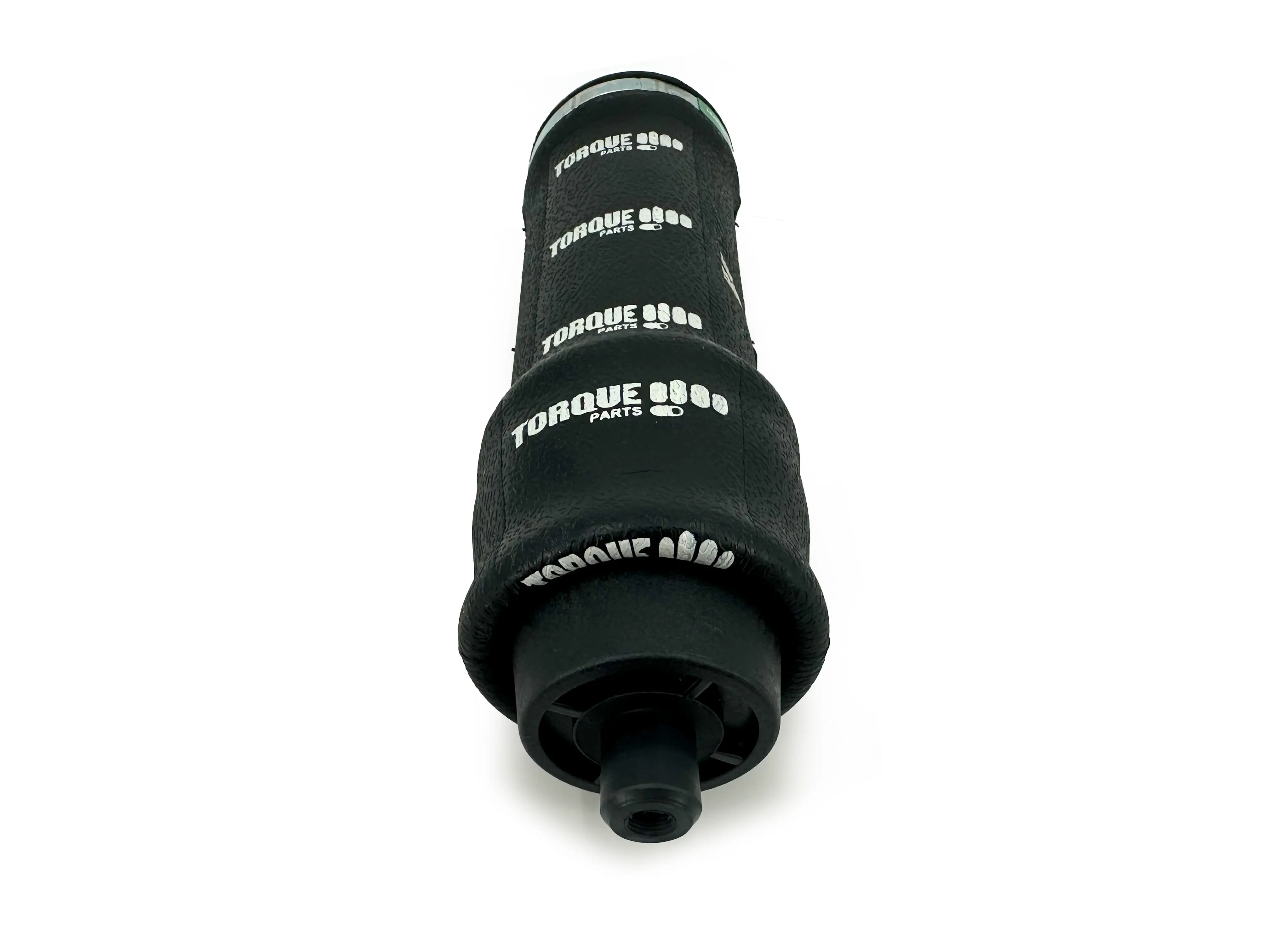

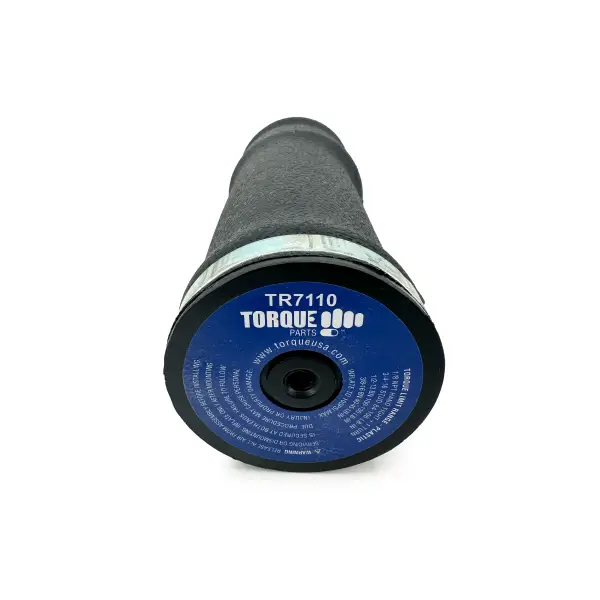

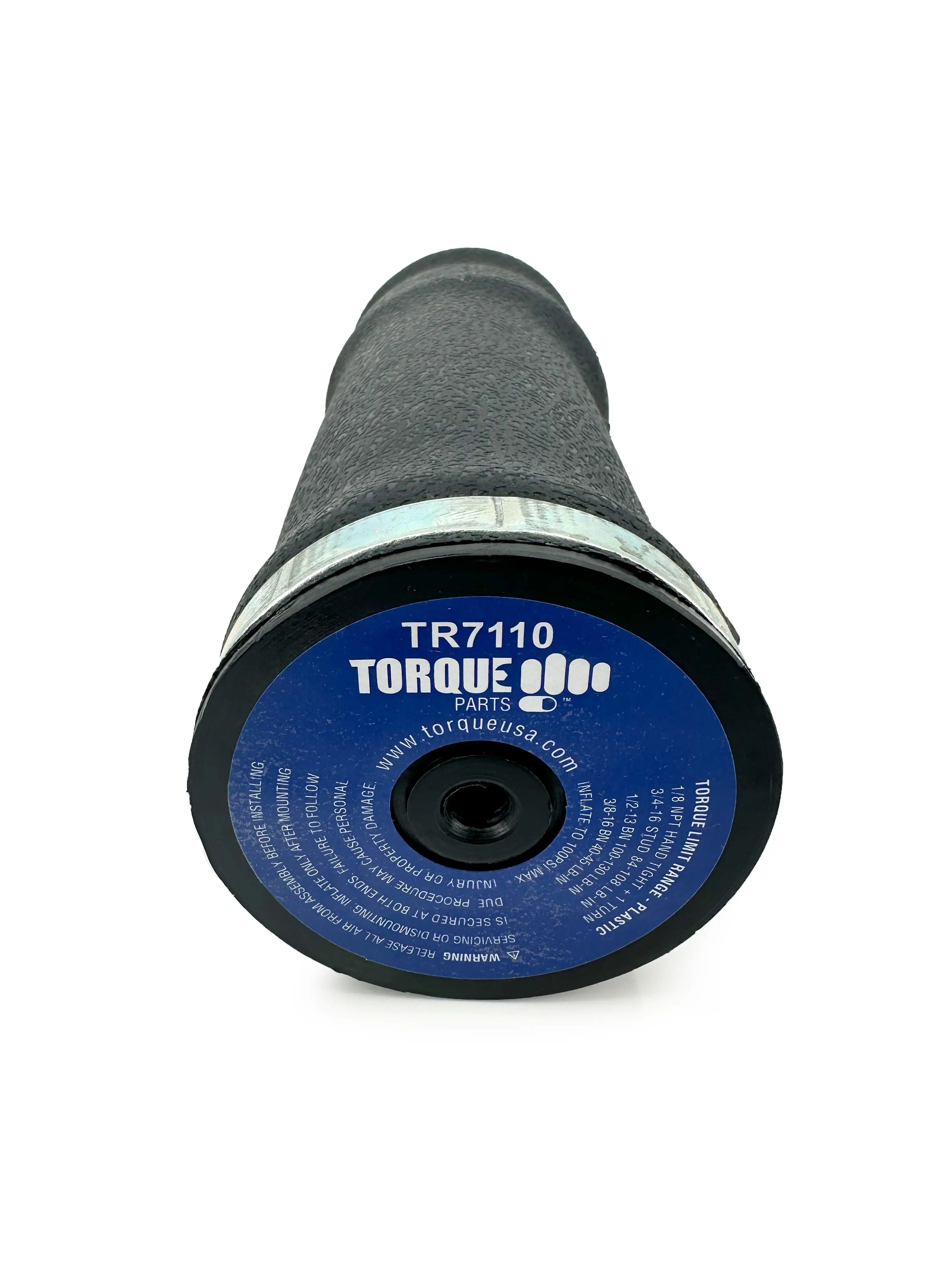

Cabin Air Spring for Kenworth Replaces R81-1002, W02-358-7110

Description : Cabin Air Spring for Kenworth Trucks

Part Number : TR7110

Cabin Air Spring for Kenworth Replaces R81-1002, W02-358-7110

Click to see price

Cabin Air Spring for Kenworth T2000 1998 & Later Model Trucks

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Automann	ABSZ70‑7110
Sampa	500.908‑01
Contitech	SC29‑B110
Firestone	7110, W023587110, W02‑358‑7110, W026007110, W02‑600‑7110
Goodyear	1S5152, 1S5‑152
IHC	2588760C1, 2591920C1, 2602754C1
Kenworth	R811002, R81‑1002, T2000

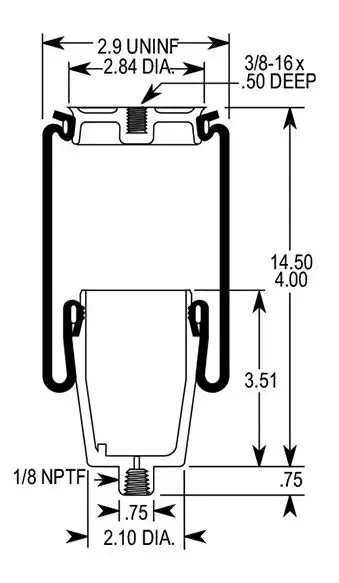

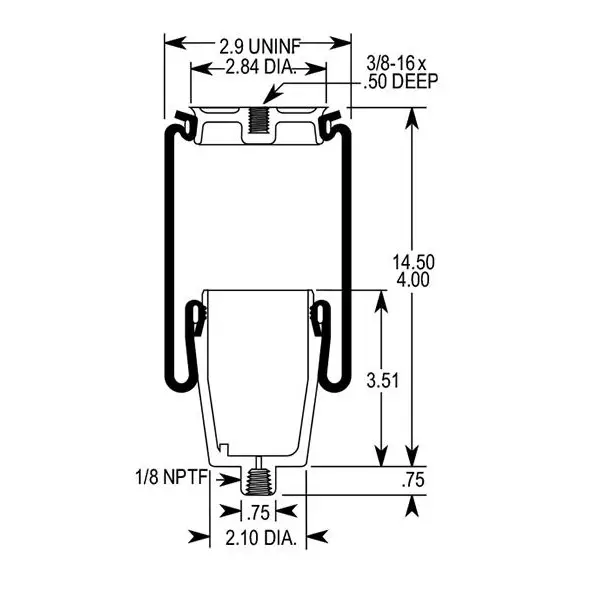

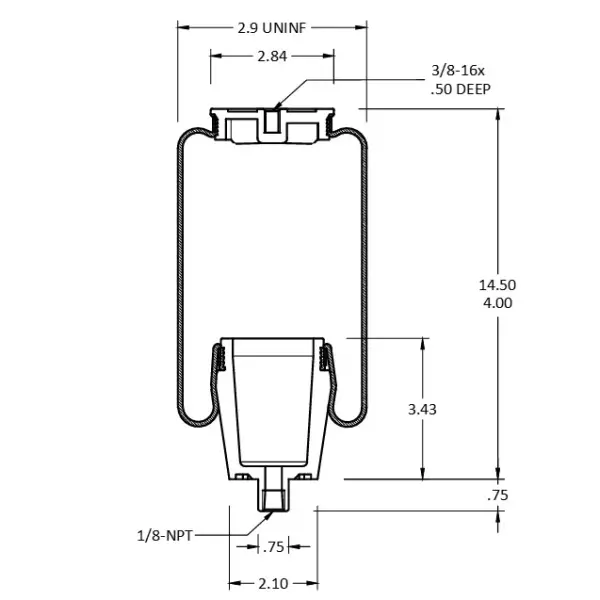

Property	Value
Locating Pin Diameter	3/8"‑16
Locating Pin Height	0.5" deep
Air Inlet	1/8" NPT
Design Height	8.5‑10.2"
Piston Diameter	2.10"
Minimum Jounce Height	6.05"
Extended Height	14.50"
Compressed Height	4.00"
Weight	1.8 lbs
