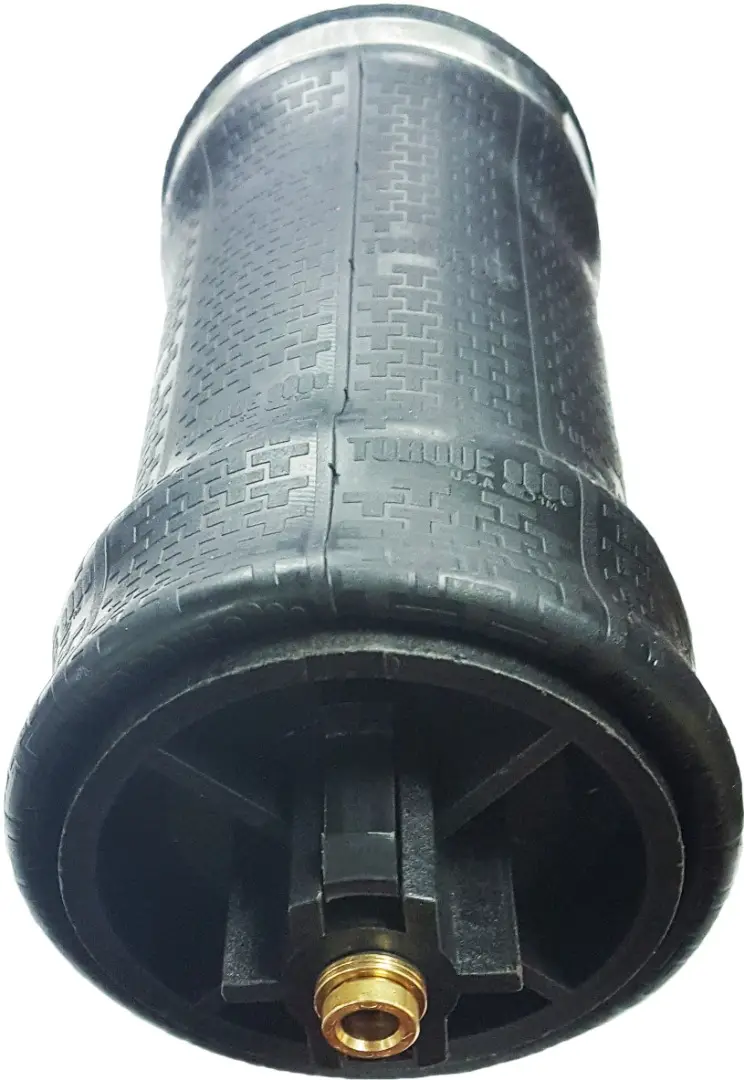

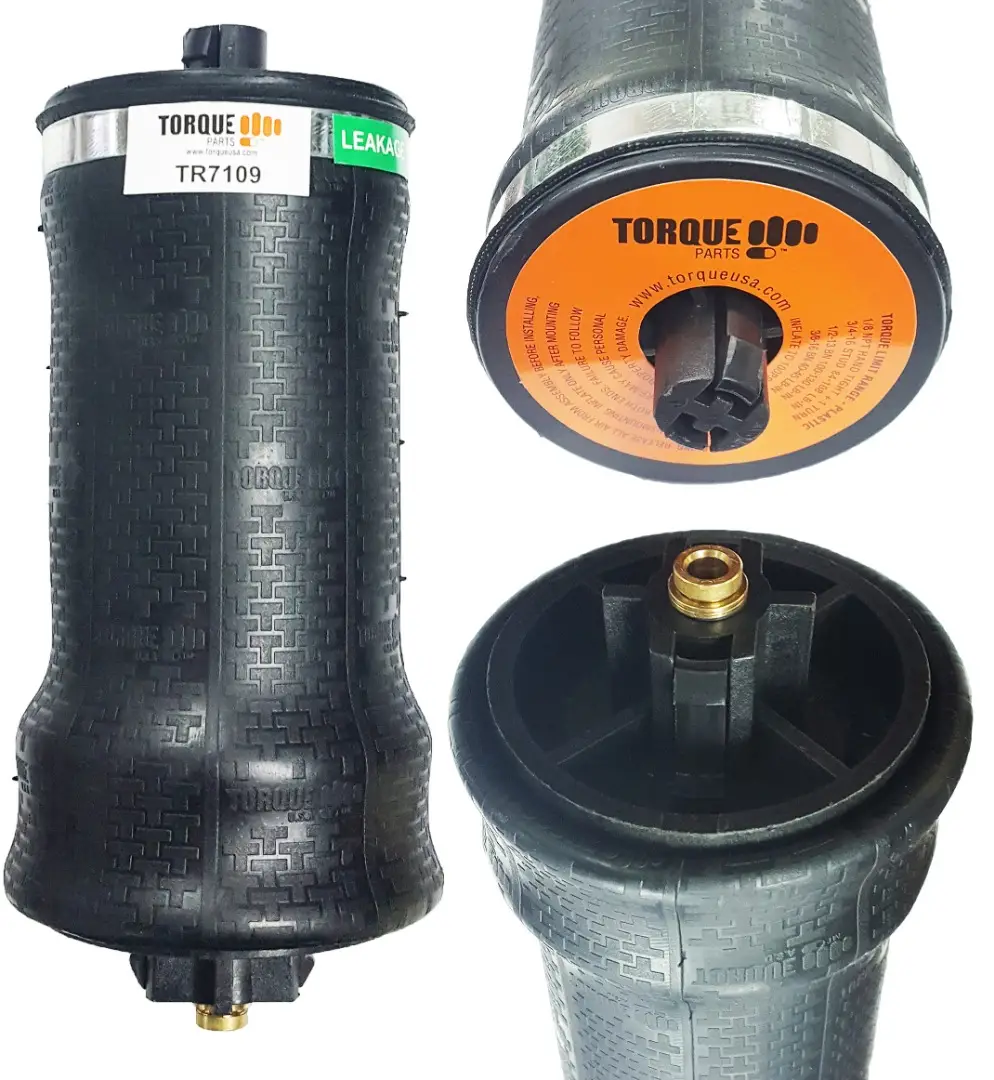

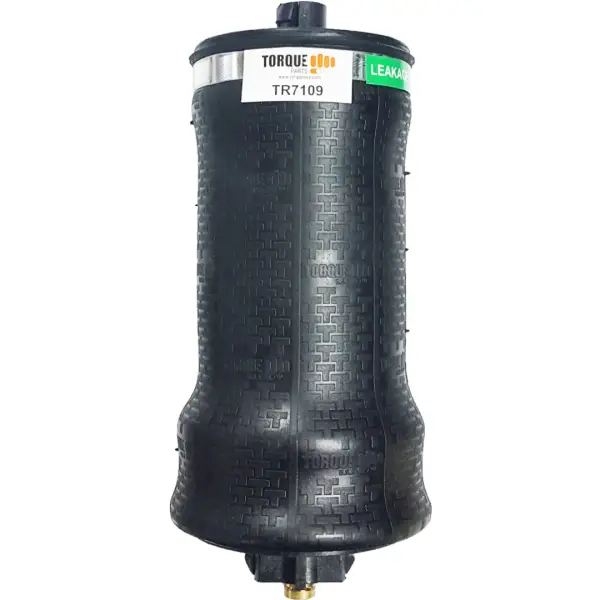

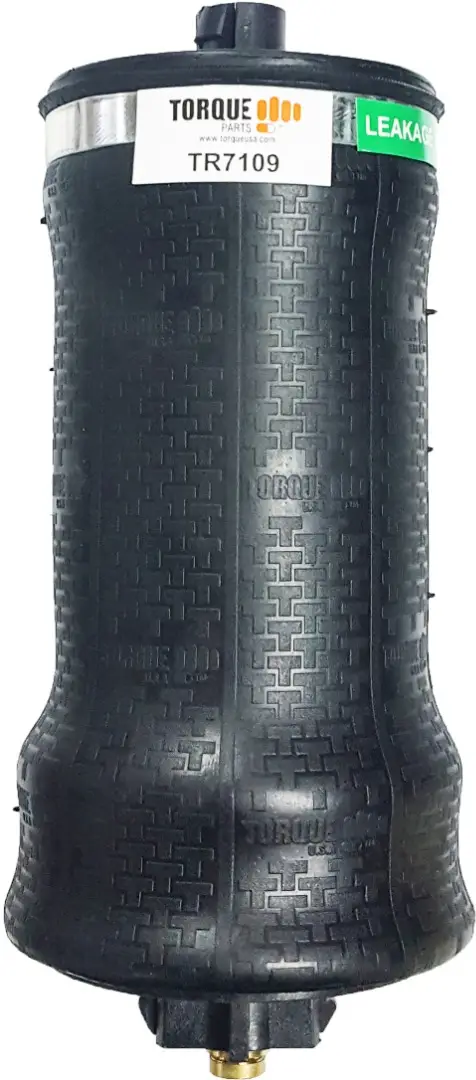

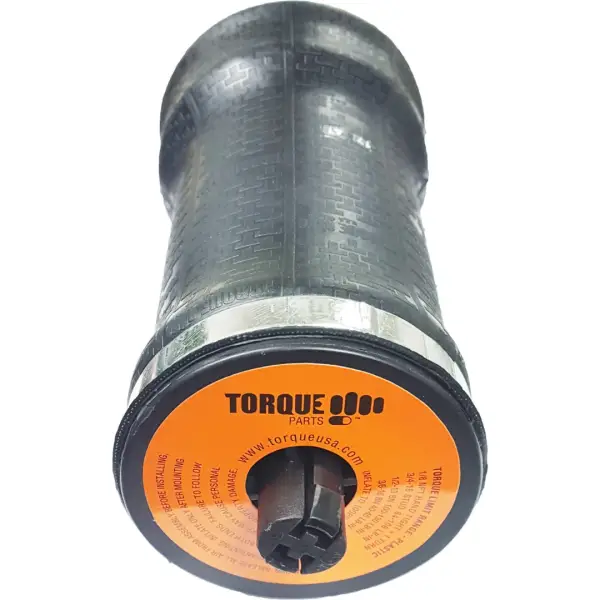

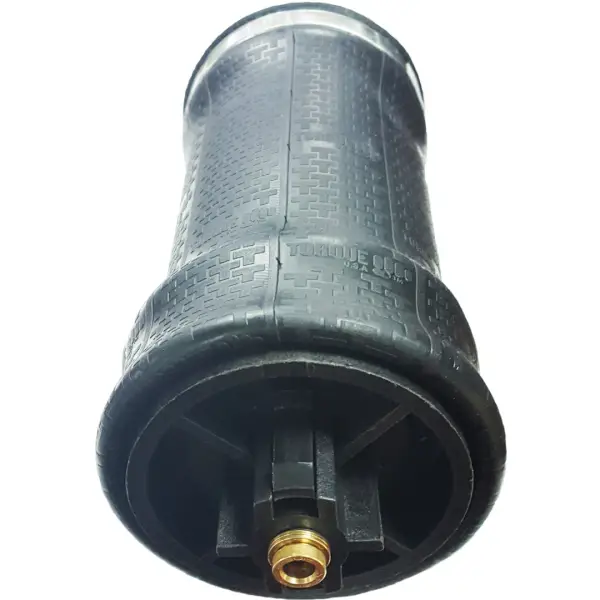

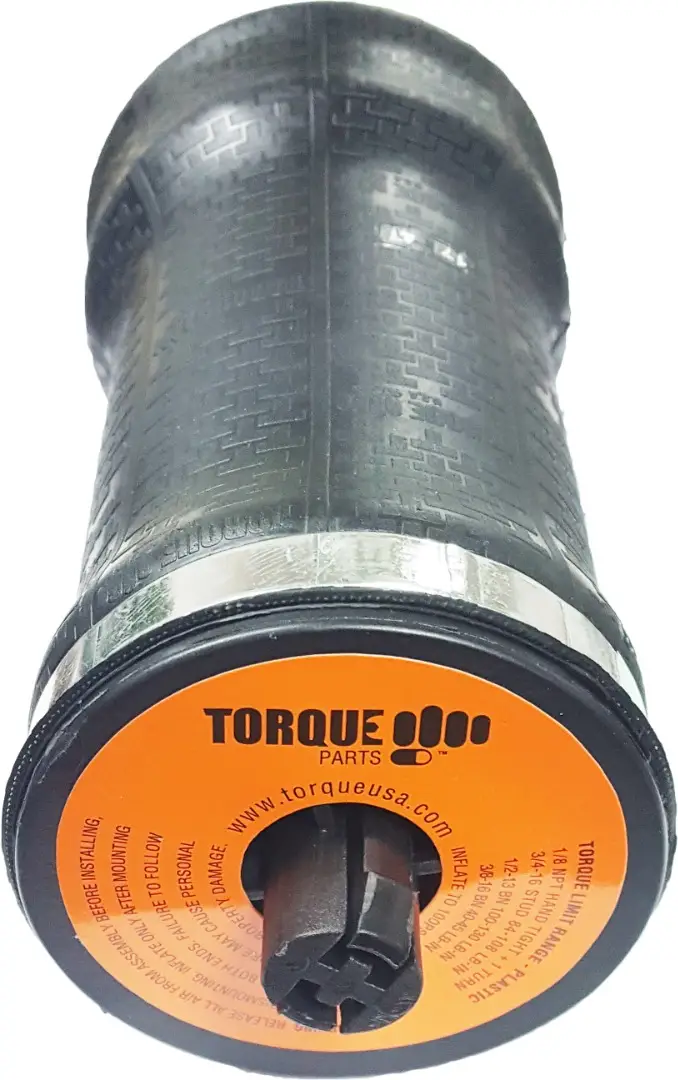

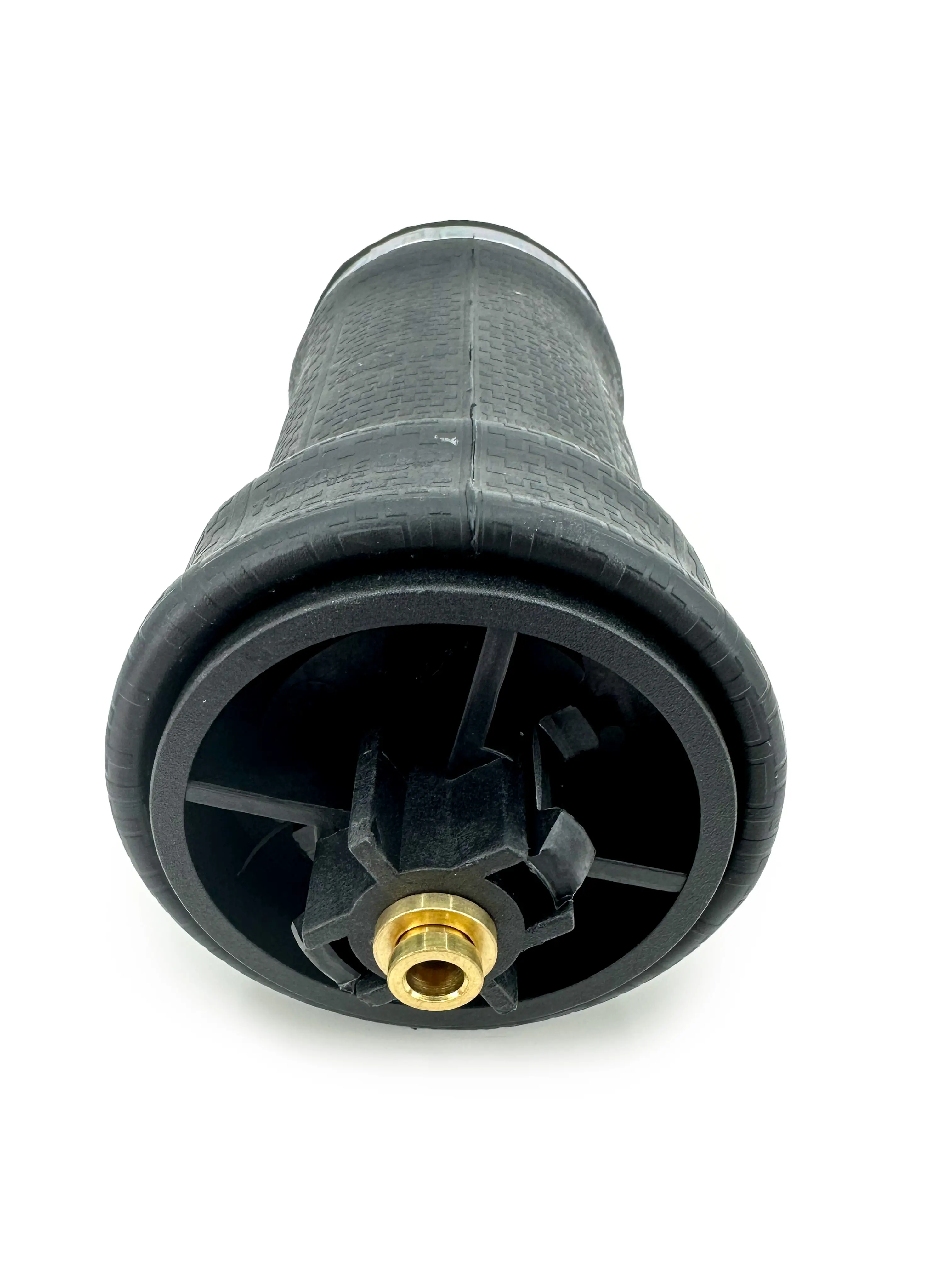

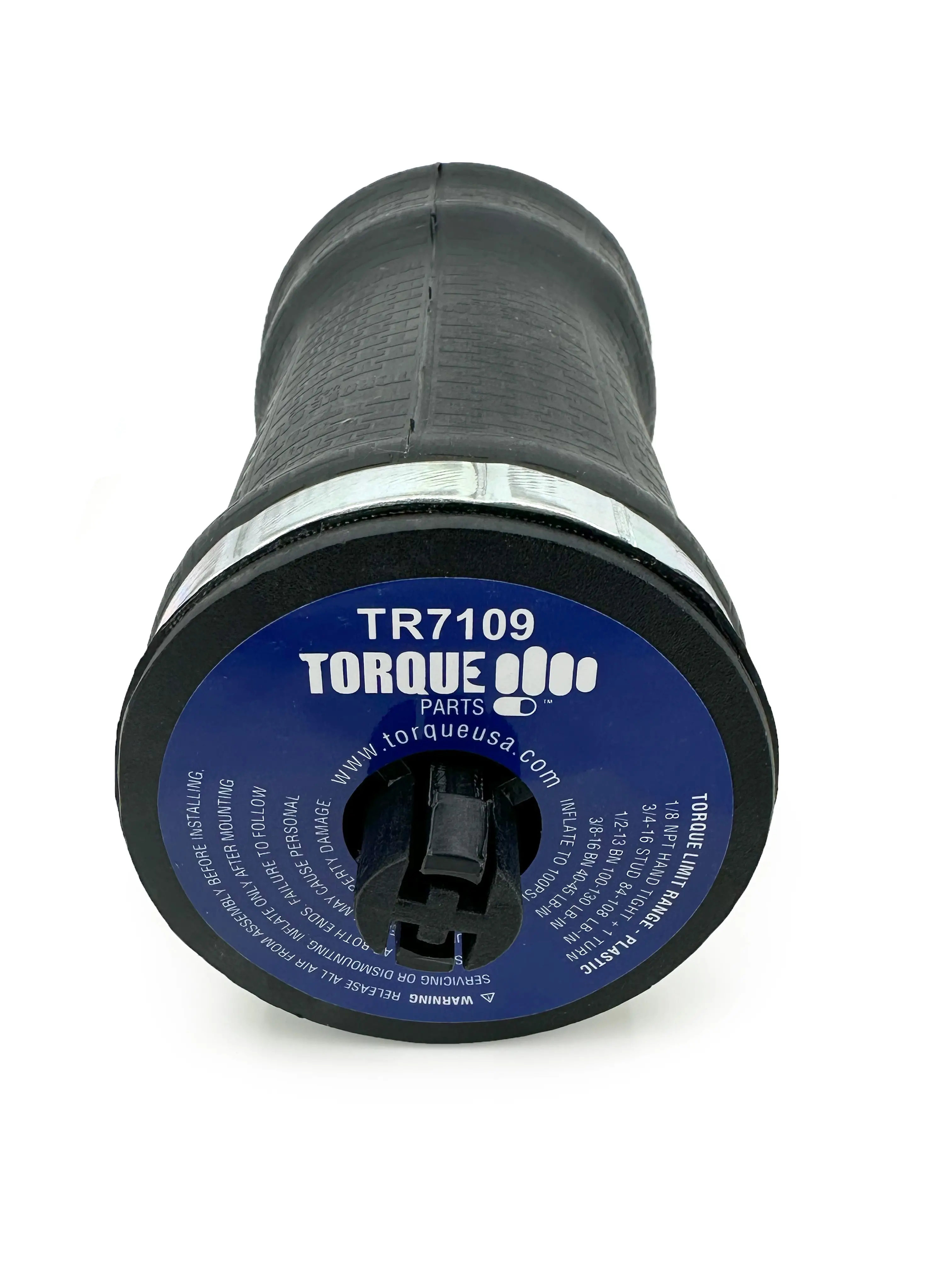

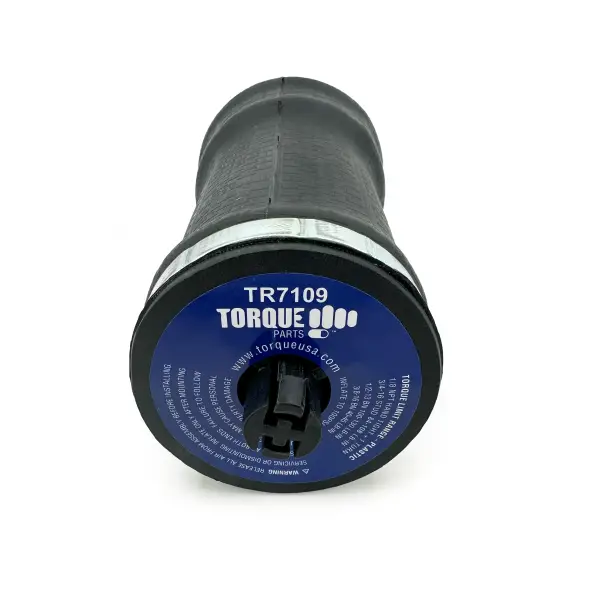

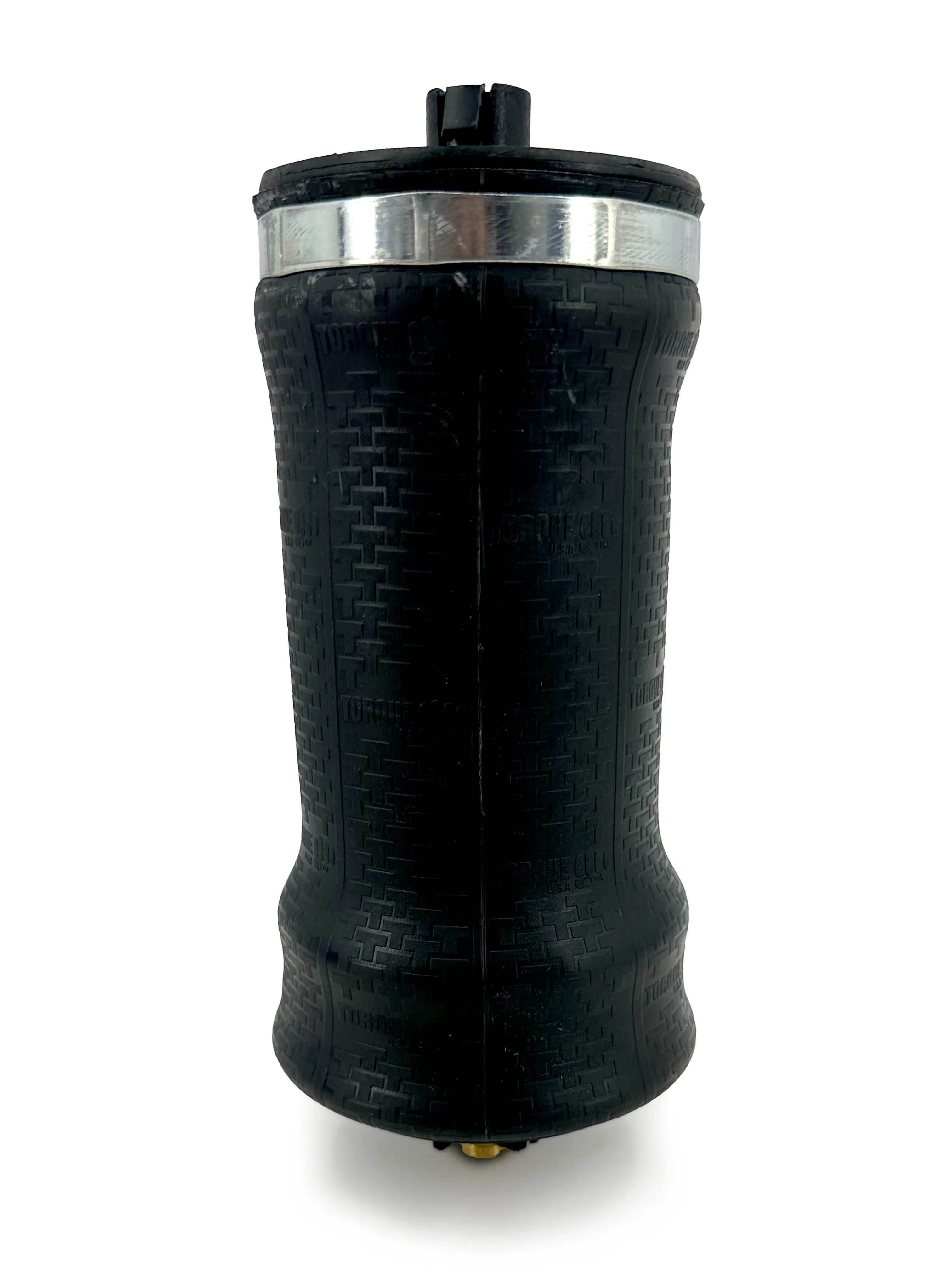

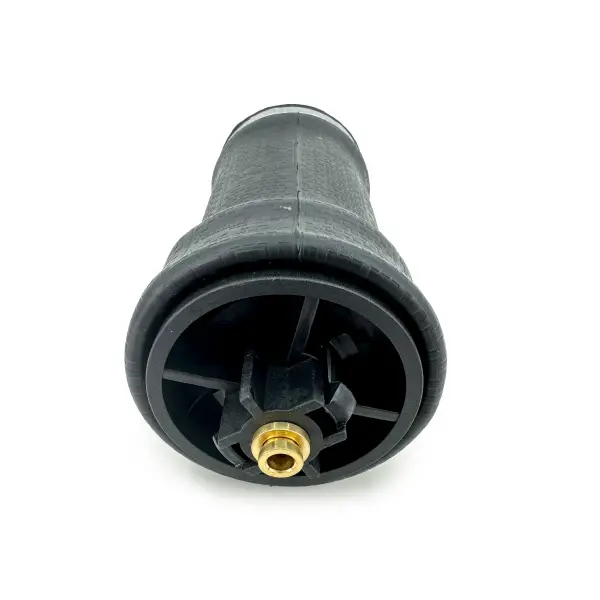

Cabin Air Spring for Kenworth Replaces T81-1000, W02-358-7109

Description : Cabin Air Spring for Kenworth Trucks

Part Number : TR7109

Cabin Air Spring for Kenworth Replaces T81-1000, W02-358-7109
Cabin Air Spring for Kenworth Replaces T81-1000, W02-358-7109
Cabin Air Spring for Kenworth Replaces T81-1000, W02-358-7109
Cabin Air Spring for Kenworth Replaces T81-1000, W02-358-7109
Cabin Air Spring for Kenworth Replaces T81-1000, W02-358-7109
Click to see price

Cabin Air Spring for Kenworth Aerocab Mid 1999 & Later Model Trucks

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
 Automann  ABSZ70‑7109
 Sampa  501.102‑01
 Contitech  68037, 69624, SC29Y109, SC29‑Y109
 Firestone  7109, W023587109, W02‑358‑7109, W026007109,  W02‑600‑7109, W026007121, W02‑600‑7121
 Kenworth  T811000, T81‑1000
 Link  11020077, 1102‑0077, 1102K077, 1102‑K077,  1104K002, 1104‑K002
 Roadleveler  T811000
 Triangle  AS‑5109

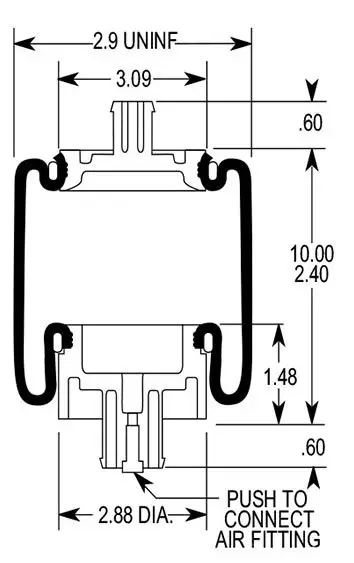

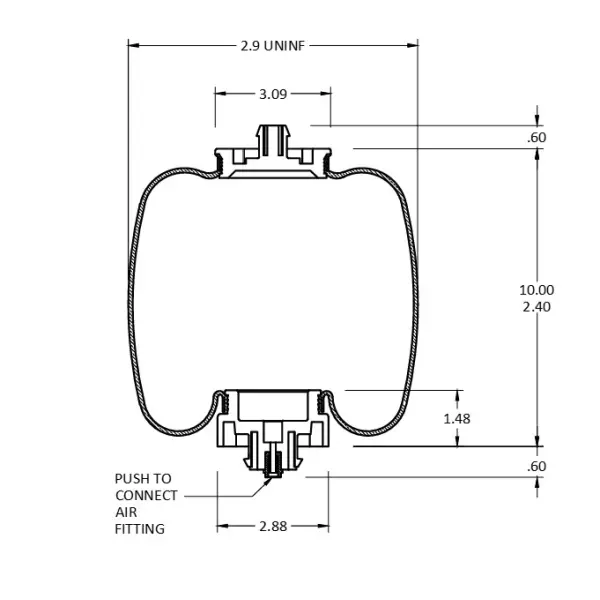

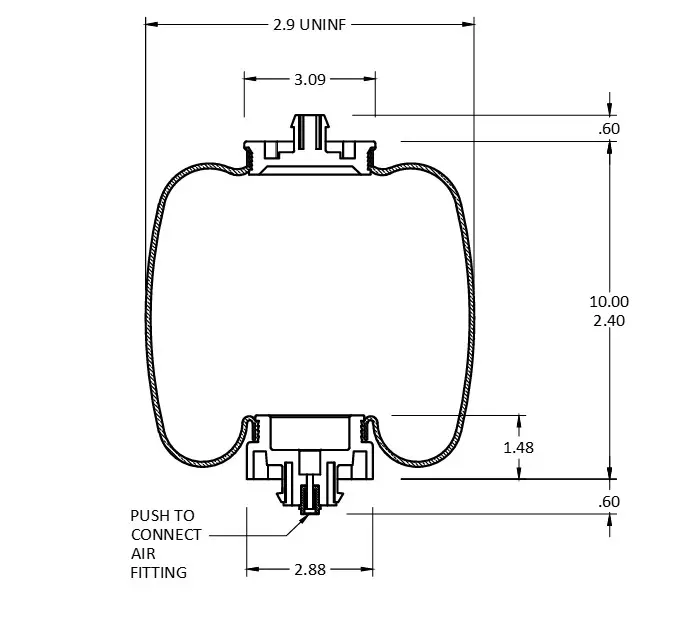

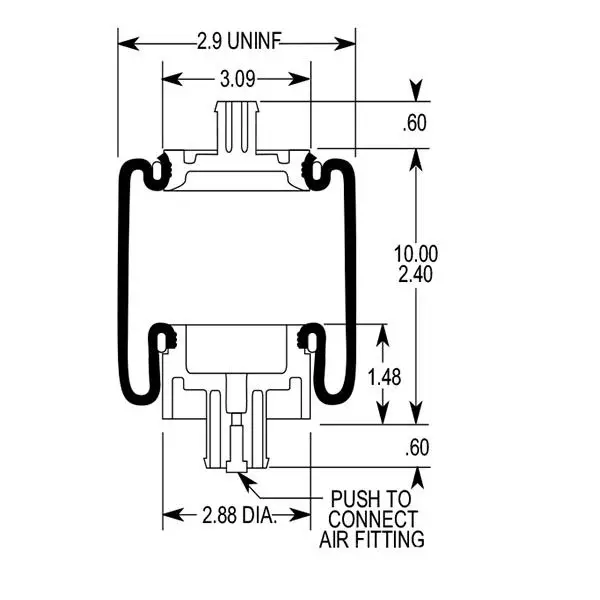

Property Value
 Locating Pin Height  0.6"
 Air Inlet  Push‑to‑connect air fitting
 Design Height  8.5‑10.2"
 Piston Diameter  2.88"
 Extended Height  10.00"
 Compressed Height  2.40"
 Weight  1.8 lbs
Longest Side44.09"
Median Side11.42"
Shortest Side44.09"
Weight0.86 lbs
