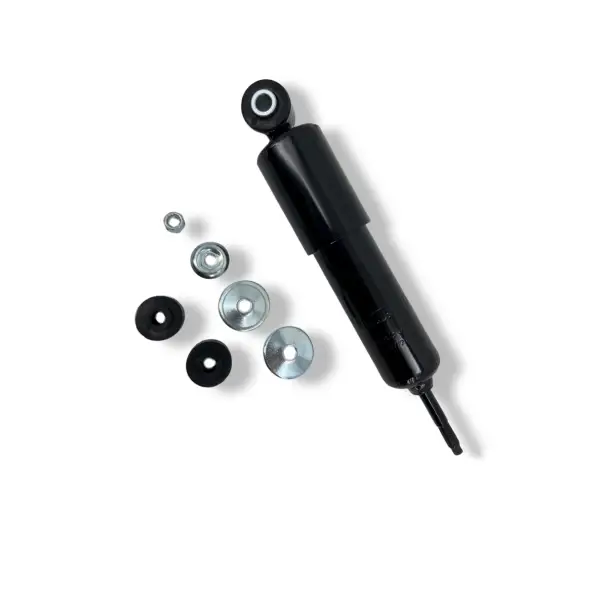

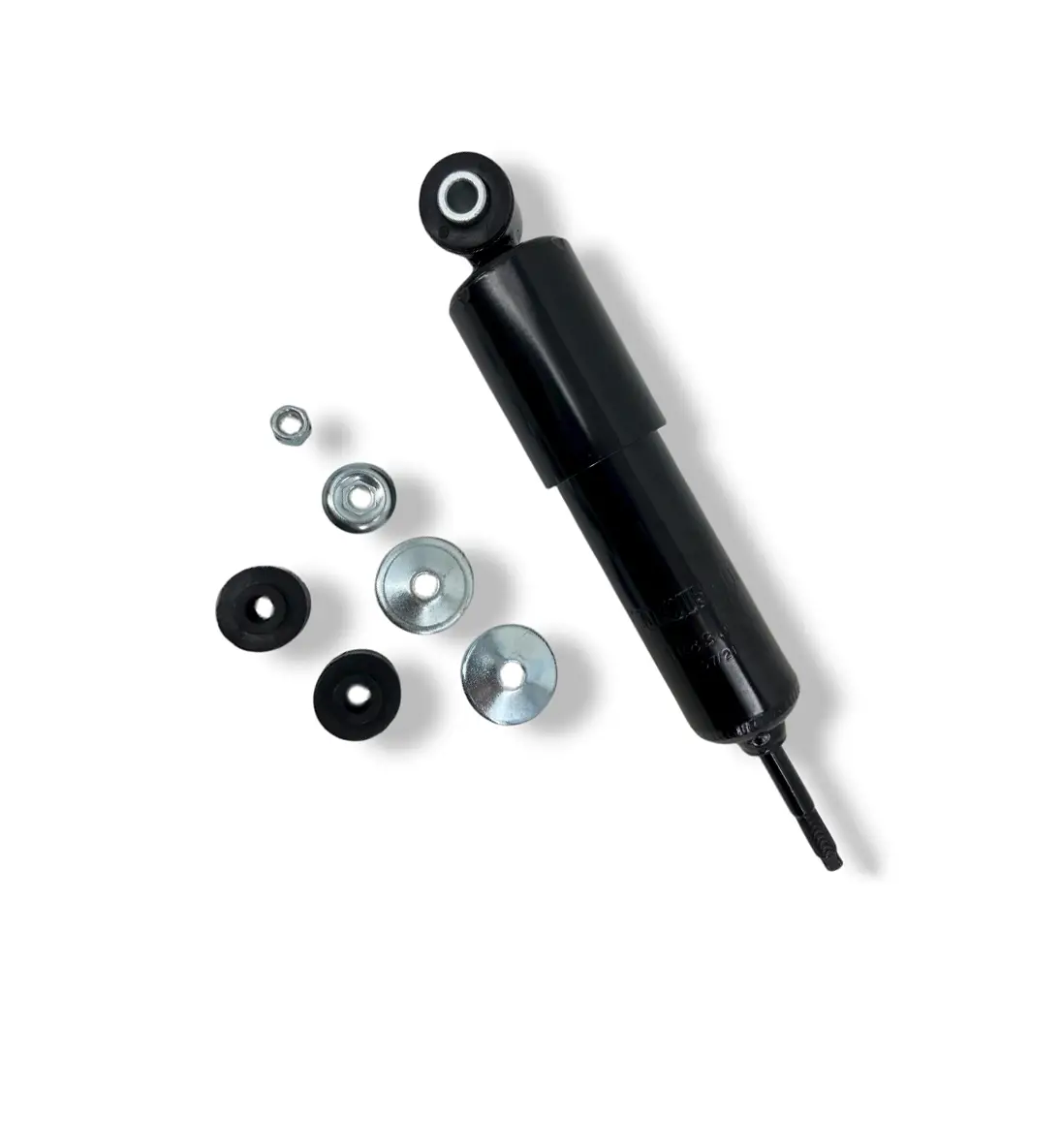

Heavy Duty Shock Absorber for Mack CHU, CX, CXN, CXP, and CXU Trucks
Where Used:
| Make | Series | Additional Information |
| MACK CAB SHOCKS | CHU - Series | CHU-613 Models with Hi - Roof Sleeper Cabs with O.E.M. Number |
| MACK CAB SHOCKS | CX (Vision) Series | Models with Sleeper Cabs w/O.E.M. Numbers |
| MACK CAB SHOCKS | CXN Series | Models with Sleeper Cabs w/O.E.M. Numbers |
| MACK CAB SHOCKS | CXP - Series | CXP-613 Models with Sleeper Cabs |
| MACK CAB SHOCKS | CXU - Pinnacle Series | CXU-613 Models with Hi - Roof Sleeper Cabs with O.E.M. Number |
| MACK CAB SHOCKS | CXU - Pinnacle Series | CXU-613 Models with Mid - Roof Sleeper Cabs with O.E.M. Number |
| Gabriel: | 83045 |
| Mack: | 14QK399M, 14QK399M2, 14QK399M3, 25625635, 25625636, 25625637, 14QK-399M, 14QK-399M2, 14QK-399M3 |
| Monroe: | 66114, 66115 |
| Volvo: | 83176193, RCSA3045, SA3045 |
| Extended Length: | 11.53 " |
| Collapsed Length: | 8.58 " |
| Stroke: | 3.81 " |
| Bore: | 1-3/8 " |
| Dust Tube: | YES |
| Recoil Cutoff: | N0 |
| Rebound: | 510 lb. |
| Compression: | 153 lb. |
| Weight: | 4lbs |
| Longest Side | 15.75 in. |
| Median Side | 2.68 in. |
| Shortest Side | 2.68 in. |
| Weight | 3.80 lbs. |
