Trailer Air Spring Replaces S-20124, 1R12-375, W01-358-9265

Description : Trailer Air Spring

Part Number : TR9265

Trailer Air Spring Replaces S-20124, 1R12-375, W01-358-9265
Trailer Air Spring Replaces S-20124, 1R12-375, W01-358-9265
Trailer Air Spring Replaces S-20124, 1R12-375, W01-358-9265
Trailer Air Spring Replaces S-20124, 1R12-375, W01-358-9265
Trailer Air Spring Replaces S-20124, 1R12-375, W01-358-9265
Click to see price

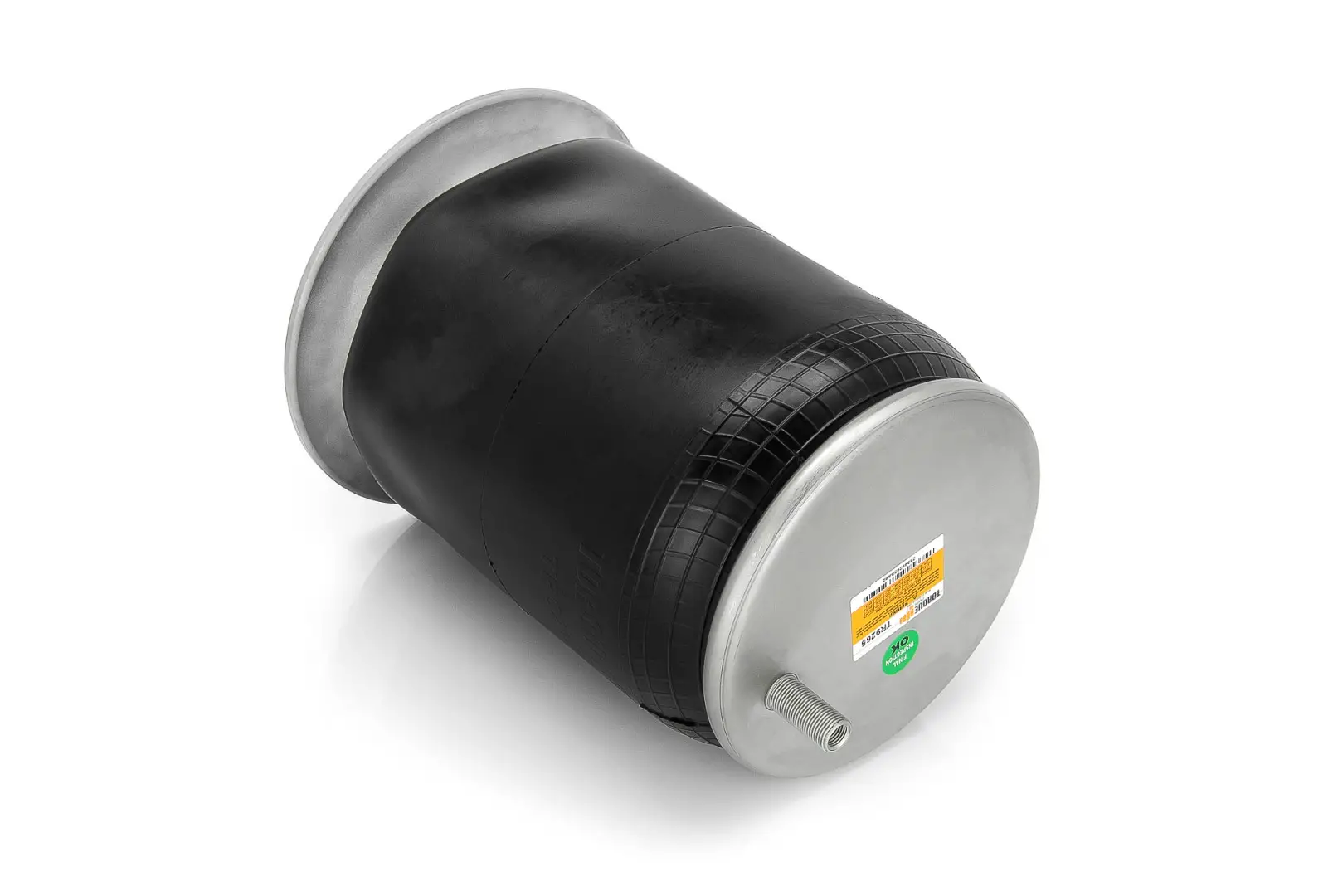

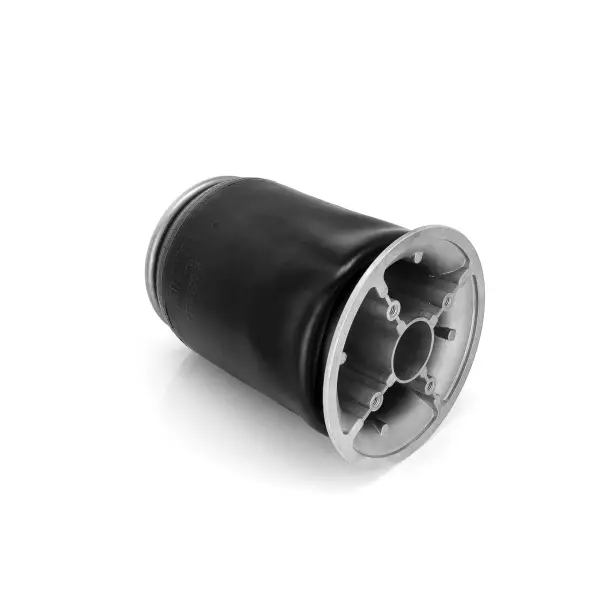

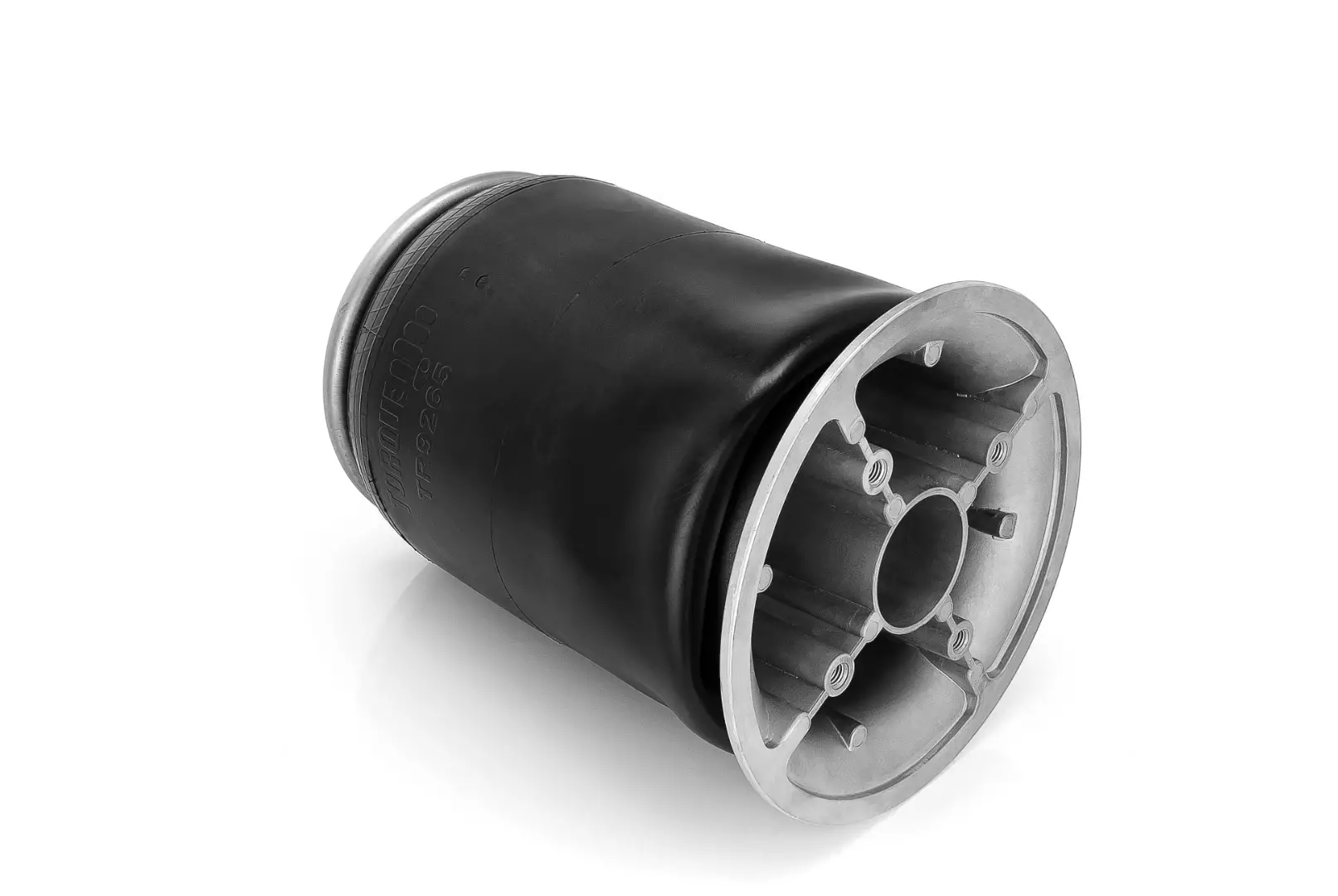

Trailer Air Spring

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
Automann 566.ER9265
Alliance ABP N32 019265
Contitech 161035, 64288, 910‑19P435, 910‑19 P 435
Dayton 352‑9265
Firestone 9235, 9265, W013589235, W01‑358‑9235, W013589265, W01‑358‑9265
Goodyear 1R12375, 1R12‑375
Hendrickson C20124, C‑20124, C20413, C‑20413, S20124, S‑20124, S20413, S‑20413, 520124, 520413, 5C2134
Ingersoll 65351501, 653515‑01
Load Guard 5C2759
Loadguard SC2759
Neway G2299265200
Triangle 8435, AS‑8435
Volvo 85101155
Volvo/White 3949238, 85101155
Sampa SP559265‑KA, SP 559265‑KA, SP559265KA

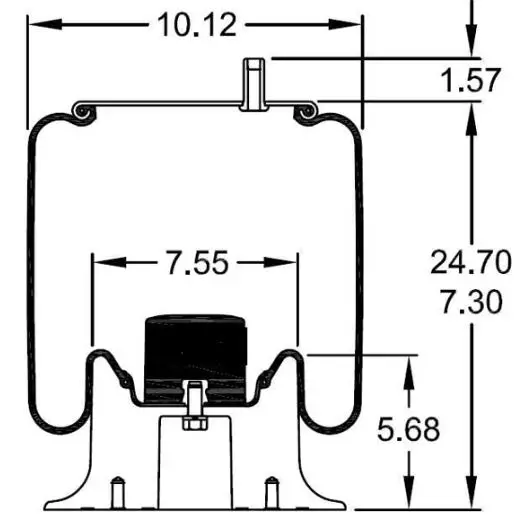

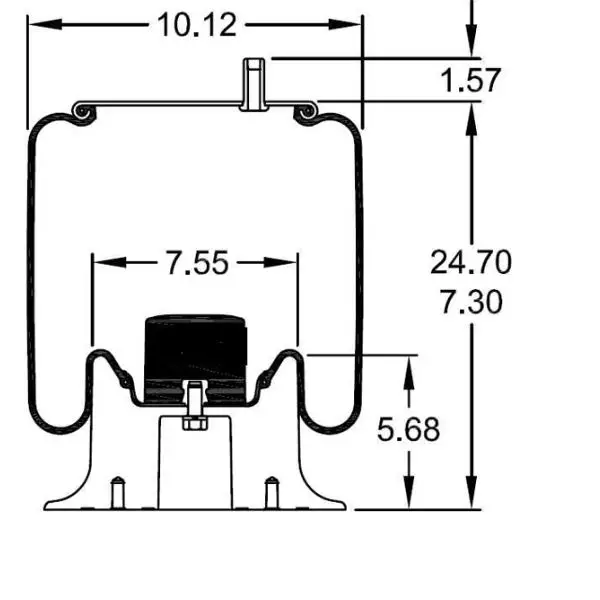

Property Value
Extended Height  24.70
Compressed Height  7.30

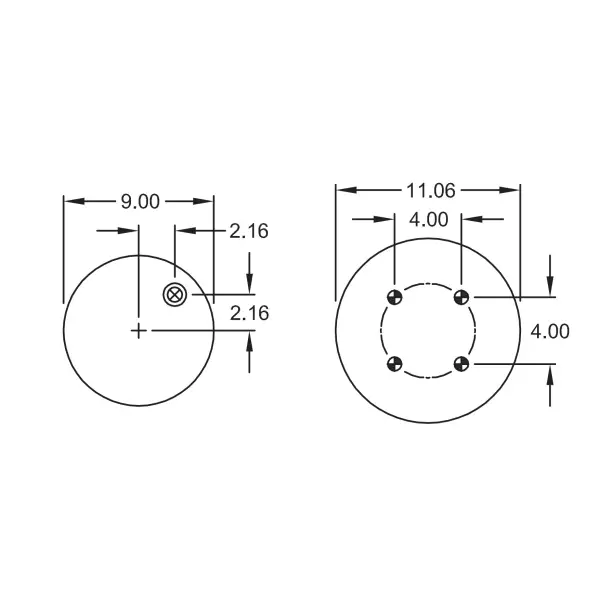

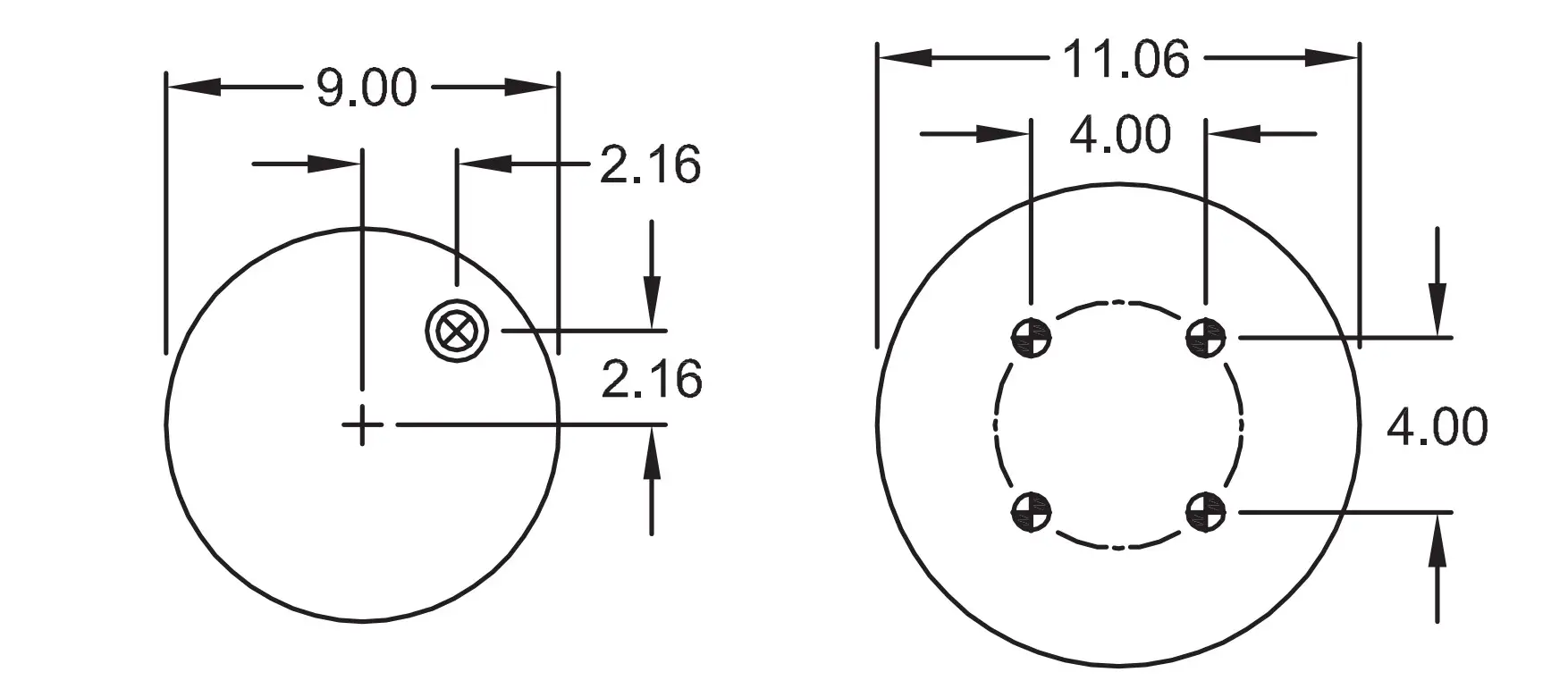

Top Plate Width  9.00
Piston Width  11.06
Weight  16.90 lbs
