Quality
Part number permanently engraved on the rubber for easy identification
4.5–5.0 mm thick rubber construction that exceeds OEM requirements
25% stronger 4140-grade steel studs for enhanced durability
Reinforced composite piston for long service life
Highest leak test ratio after final assembly
Specifications
Replaces
Freightliner: A1618335000, A16-18335-000, A1618335001, A16-20121-000, A16-18335-001, A16-17574-001
Firestone: W01-358-9759, W01-377-9743
Goodyear: 1R12-603
Contitech: 910S16P224
Other References: AS9759, HDV9759, HD9759
Warranty
3-Year Unlimited Mileage Warranty – One of the industry’s best warranties for rolling lobe / reversible sleeve air springs. Registration through the Torque Parts website is required after purchase.
Important Fitment Notice
Please contact your dealer to verify the original part number before purchasing. Confirm that this air spring replaces your existing unit or compare all specifications with your current air bag.
Important: Buying an air spring by vehicle make and model alone is one of the most common mistakes. Always verify by part number and dimensions.
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Automann
|
69768, AB1DF239759, 1DF23‑9759, 1DF239759, AB1DF23‑A999, AB1DF23‑9759, AB1DF23A999
|
|
Contitech
|
68208, 910S16P224, 9 10S‑16 P 224, AS9759, 9 10S‑16 P 1619, 910S16P1619
|
|
Fleetpride
|
AS9759
|
|
Freightliner
|
A1618335000, A16‑18335‑000, A1618335001, A16‑18335‑001, A16‑20121‑000, A1620121000, A16‑20111‑001, A1620111001, A16‑20111‑000, A1620111000, A16‑18335‑001, A1618335001, A16‑18335‑000, A1618335000, A16‑17574‑002, A1617574002, A16‑17574‑001, A1617574001, A16‑17574‑000, A1617574000, A16‑20121‑001, A1620121001, A16‑21558‑000, A1621558000
|
|
Firestone
|
9759, W013589759, W013779759, W01‑377‑9743, W013779743, W01‑358‑9759 PLASTIC, W013589759 PLASTIC, W01‑358‑9759, W013589759, 1T15ZR‑6
|
|
Volvo
|
85101151
|
|
Goodyear
|
1R12‑603, 1R12603
|
|
Meritor
|
MAF9781
|
|
SAF Holland Goldline:
|
G2299759200, G229A999400
|
| Property |
Value |
|

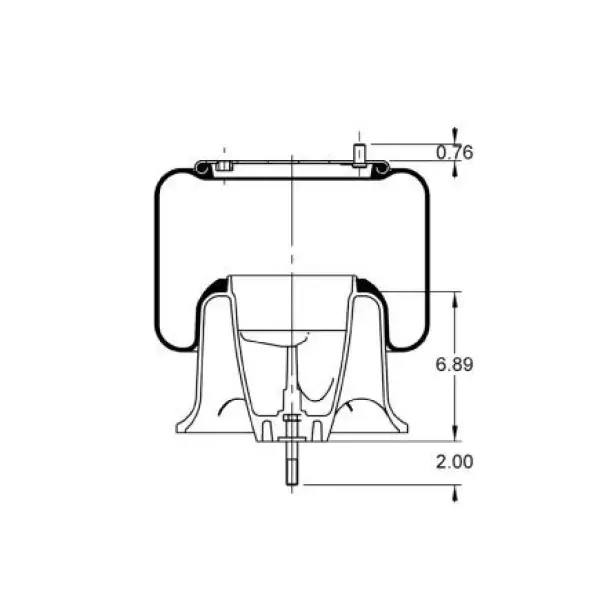

Extended Height
|
23.00"
|
|
Compressed Height
|
8.75"
|
|
Top Plate Width
|
9.00"
|
|
Piston Width
|
10.62"
|
|
Weight
|
13.60 lbs
|
Freightliner Rear Fas Airliner lI (Freightliner & Sterling)
| Longest Side | 0.00" |
| Median Side | 0.00" |
| Shortest Side | 0.00" |
| Weight | 0.00 lbs |
