Convoluted Air Spring Replaces W01-358-7659, 2B7-548, R005079

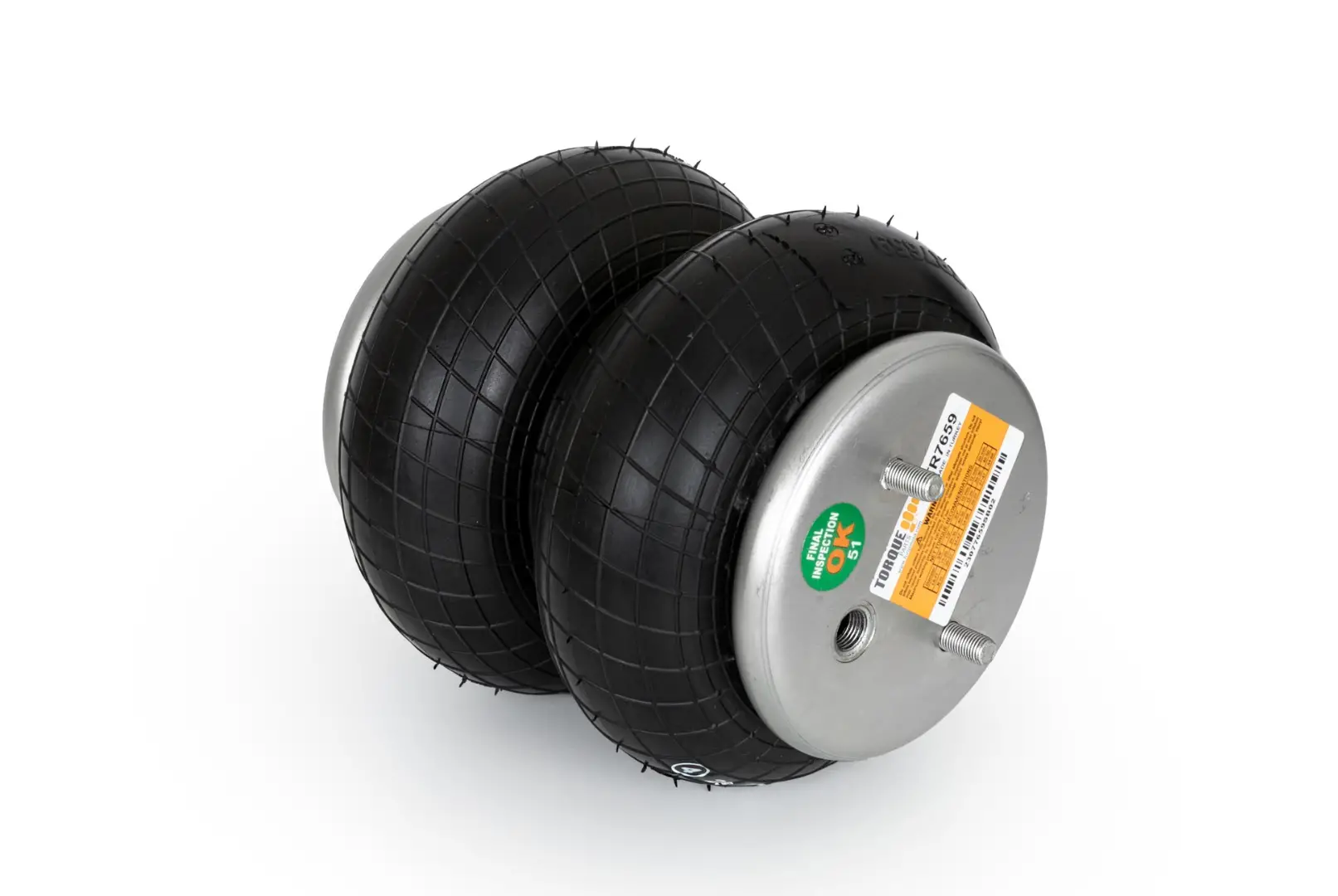

Description : Convoluted Air Spring

Part Number : TR7659

Convoluted Air Spring Replaces W01-358-7659, 2B7-548, R005079
Convoluted Air Spring Replaces W01-358-7659, 2B7-548, R005079
Convoluted Air Spring Replaces W01-358-7659, 2B7-548, R005079
360° view of Convoluted Air Spring Replaces W01-358-7659, 2B7-548, R005079
Click to see price

Convoluted Air Spring

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Brand Reference Numbers
 Automann  ABSP2B07RA‑7659
 Contitech  67667
 Firestone  7659, W01‑358‑7659, W01‑358‑5079
 Goodyear  2B7548, 2B7‑548
 Hendrickson  5079, R005079
 Triangle  AS‑4775
 Sampa  SP557659, SP 557659
Property Value

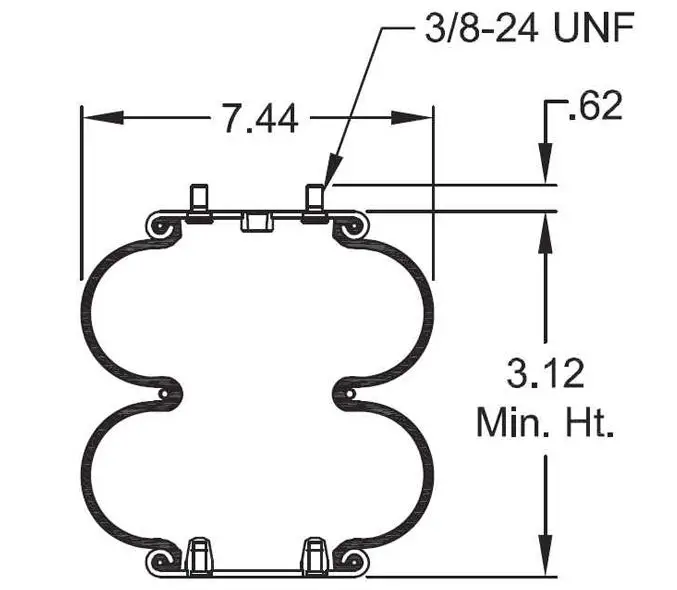

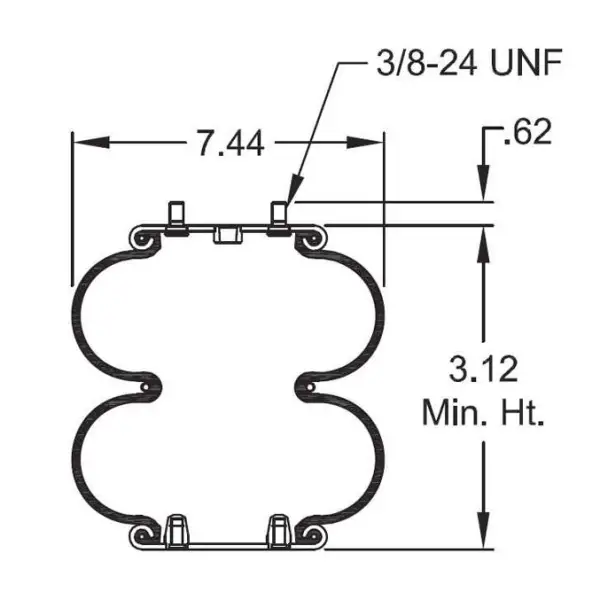

Compressed Height  3.12"

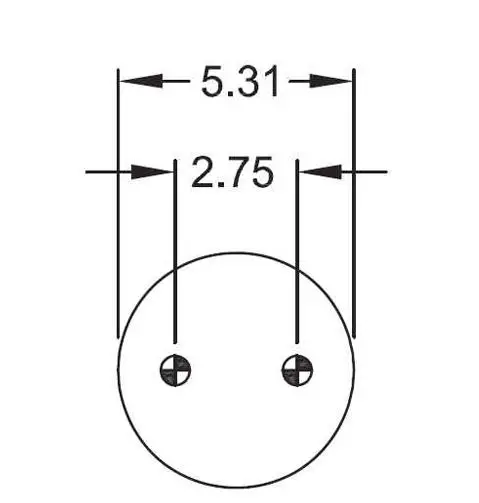

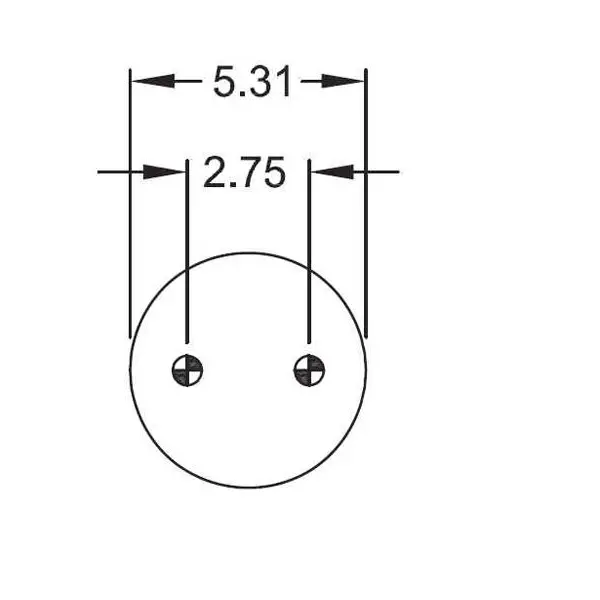

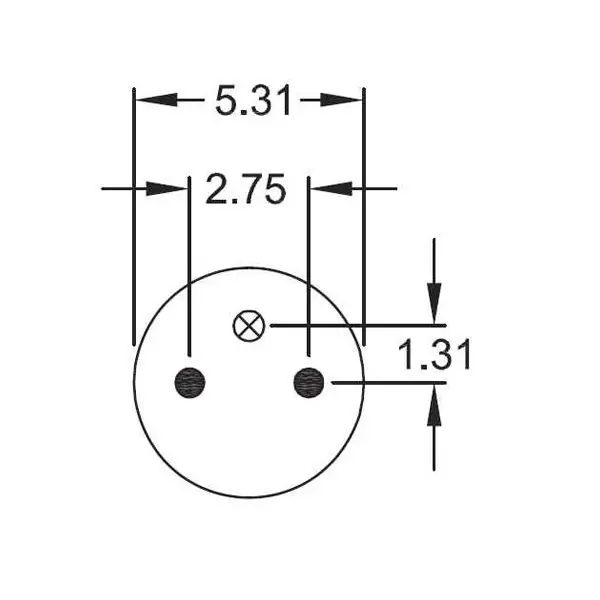

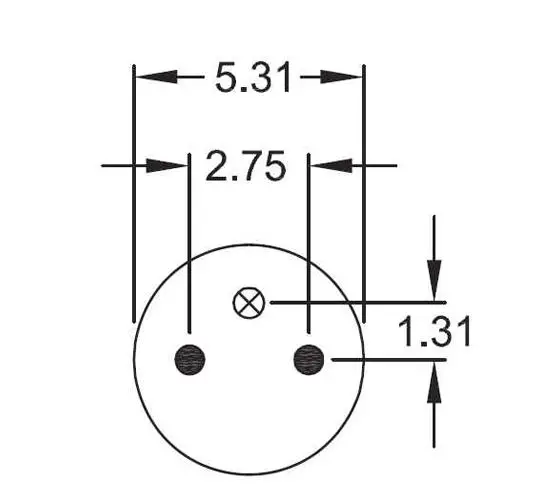

Top Plate Width  5.31"
Piston Width  5.31"
Weight  5.1 lbs
Inner Box
Longest Side Median Side Shortest Side Weight
5.71" 7.87" 7.87" 4.76 lbs
Outer Box
Quantity Longest Side Median Side Shortest Side Weight
70 44.09" 44.09" 10.63" -

Note: Weight information is not available for the outer box.
