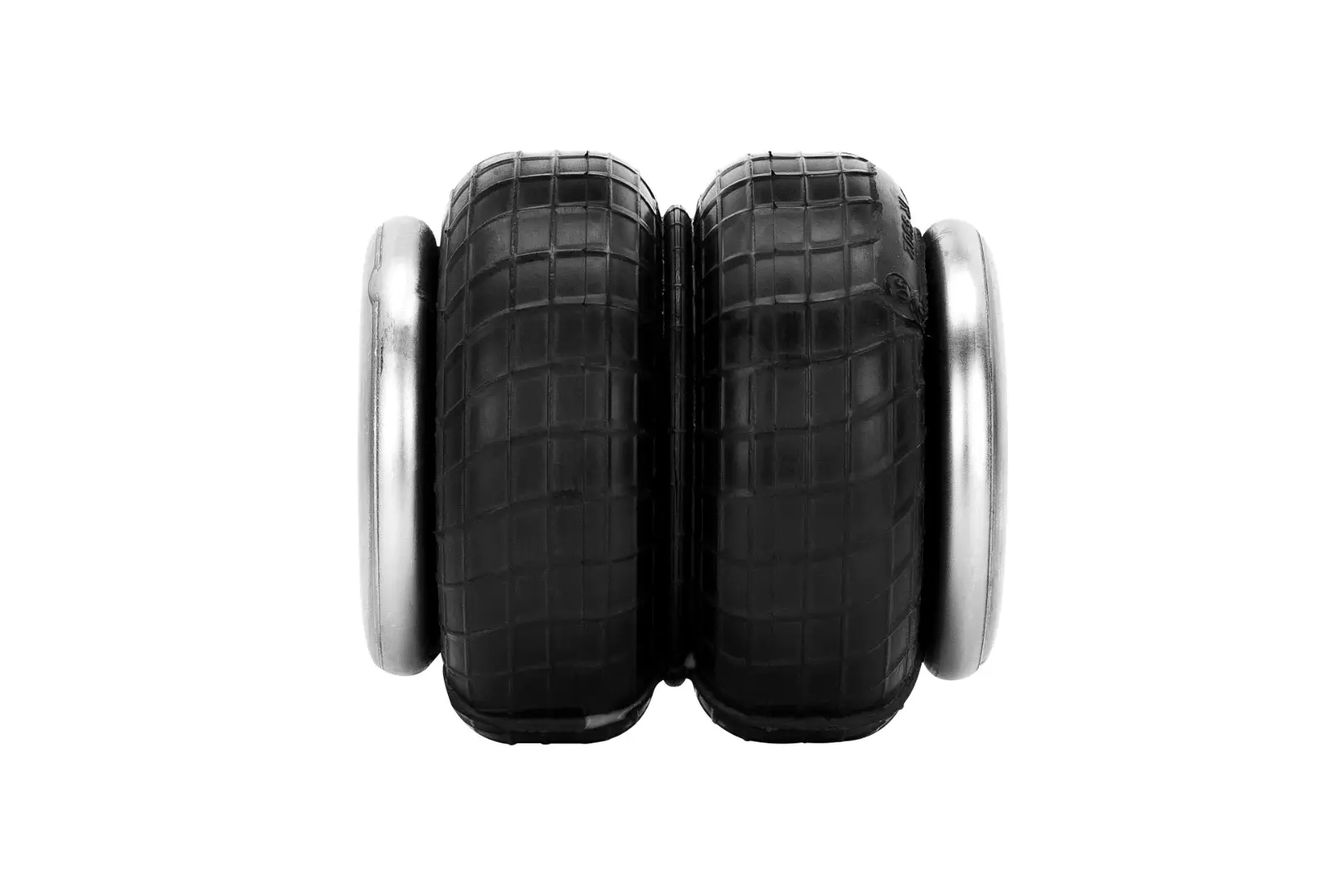

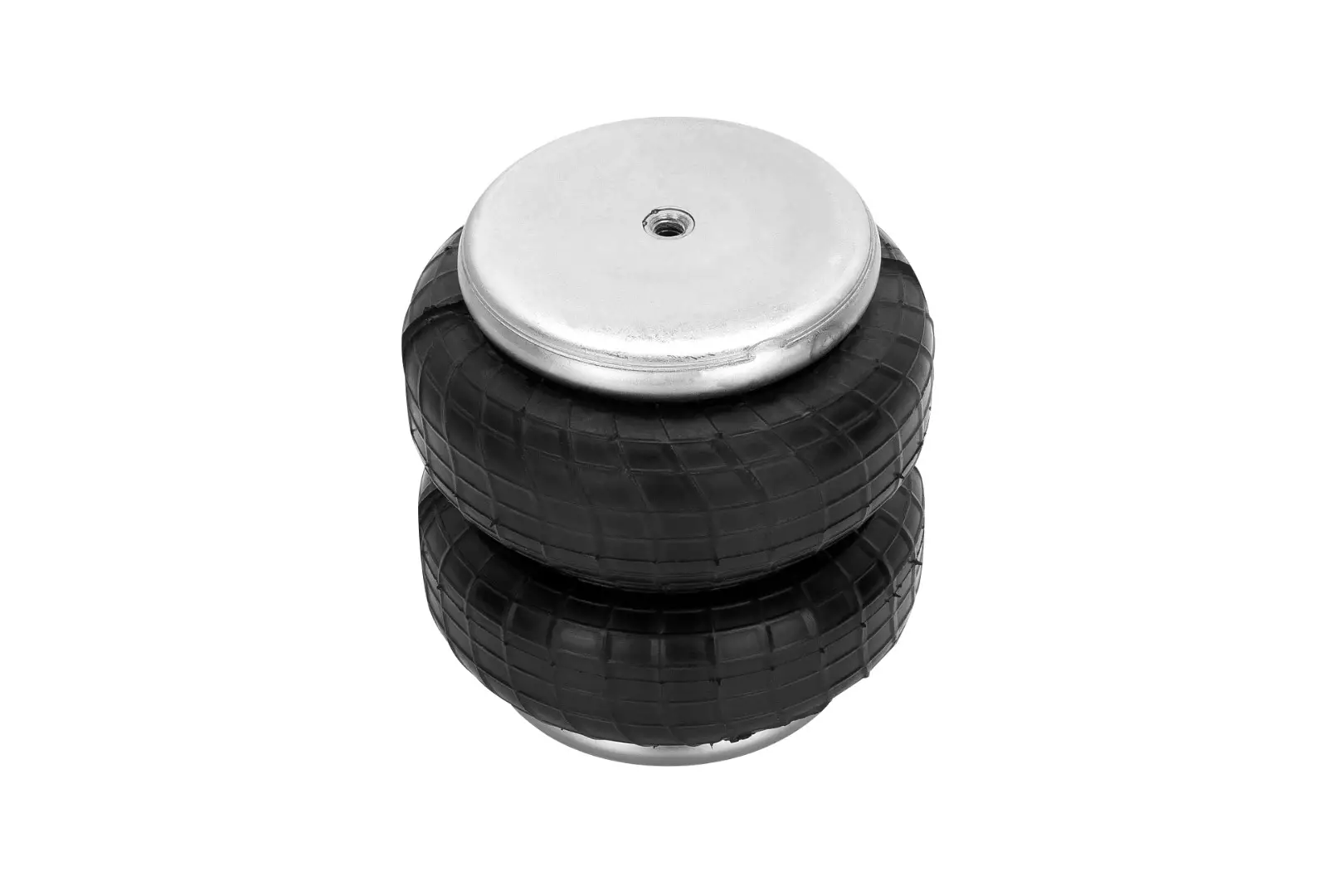

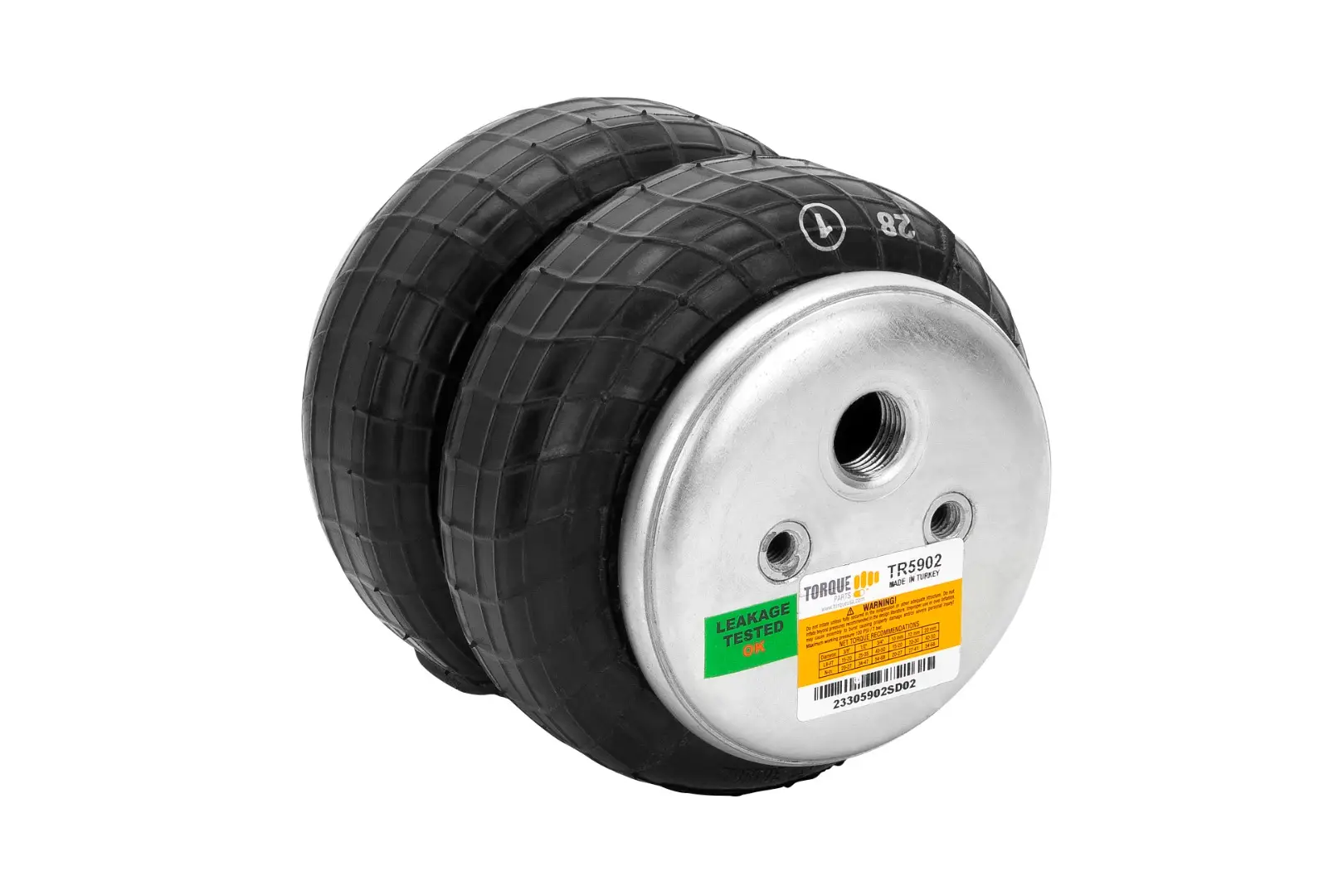

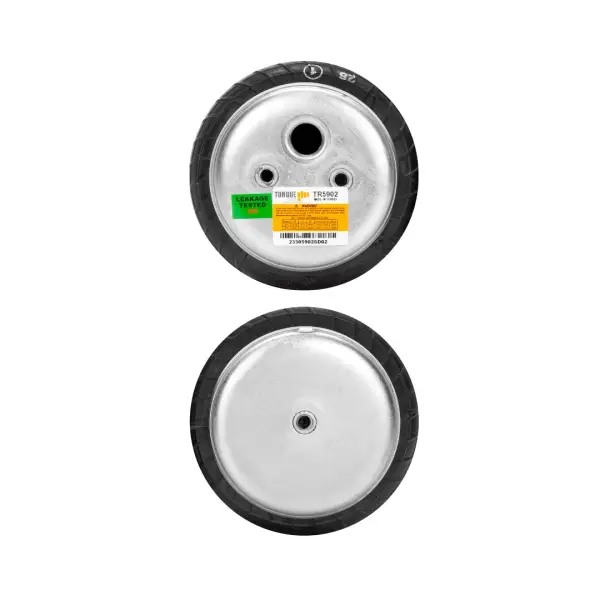

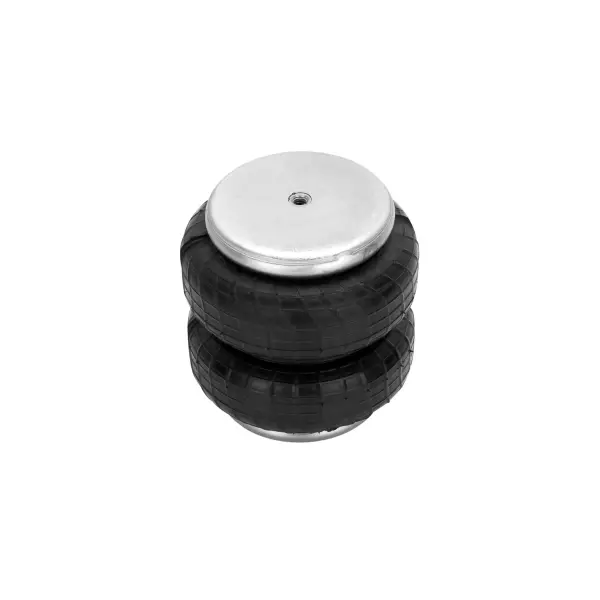

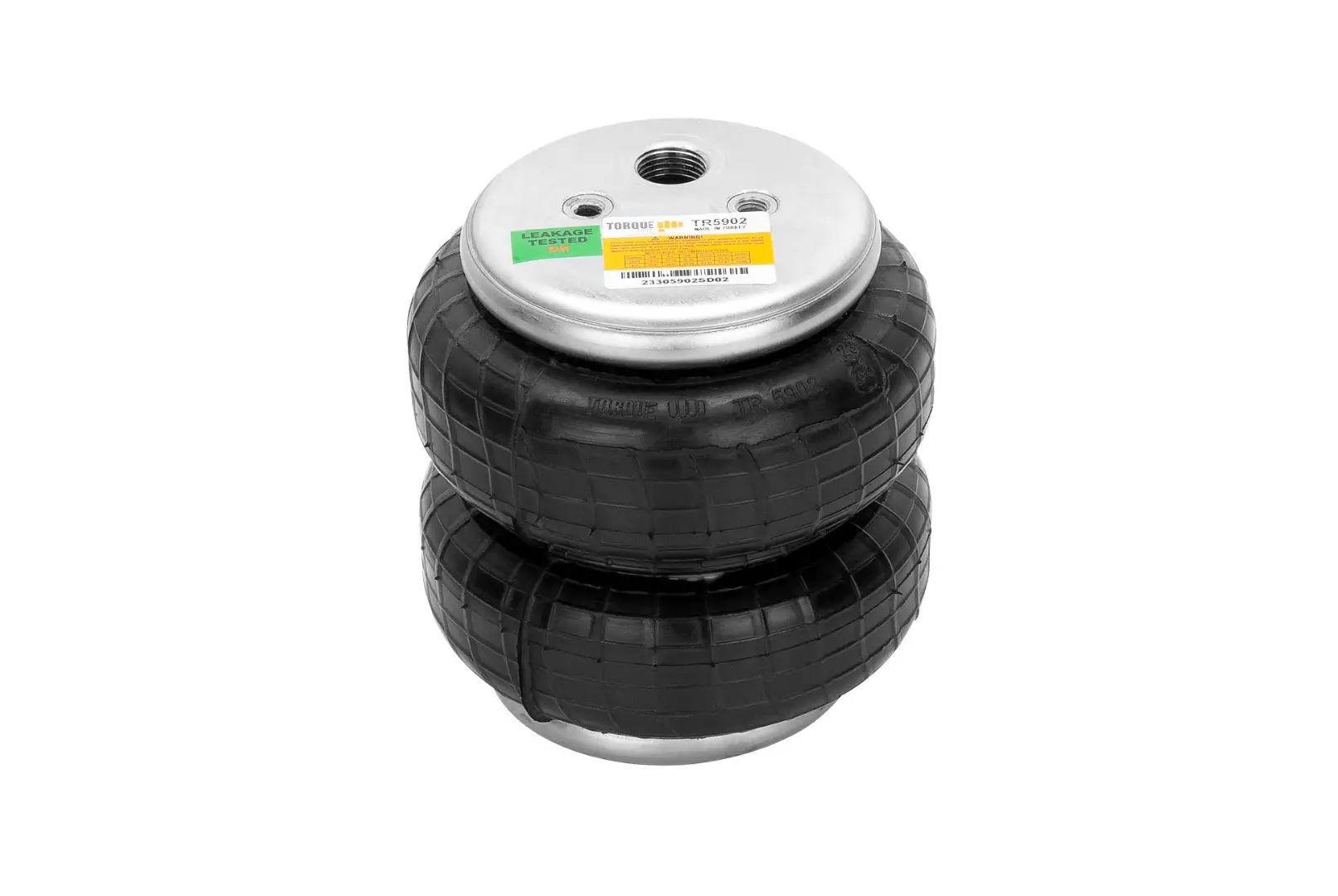

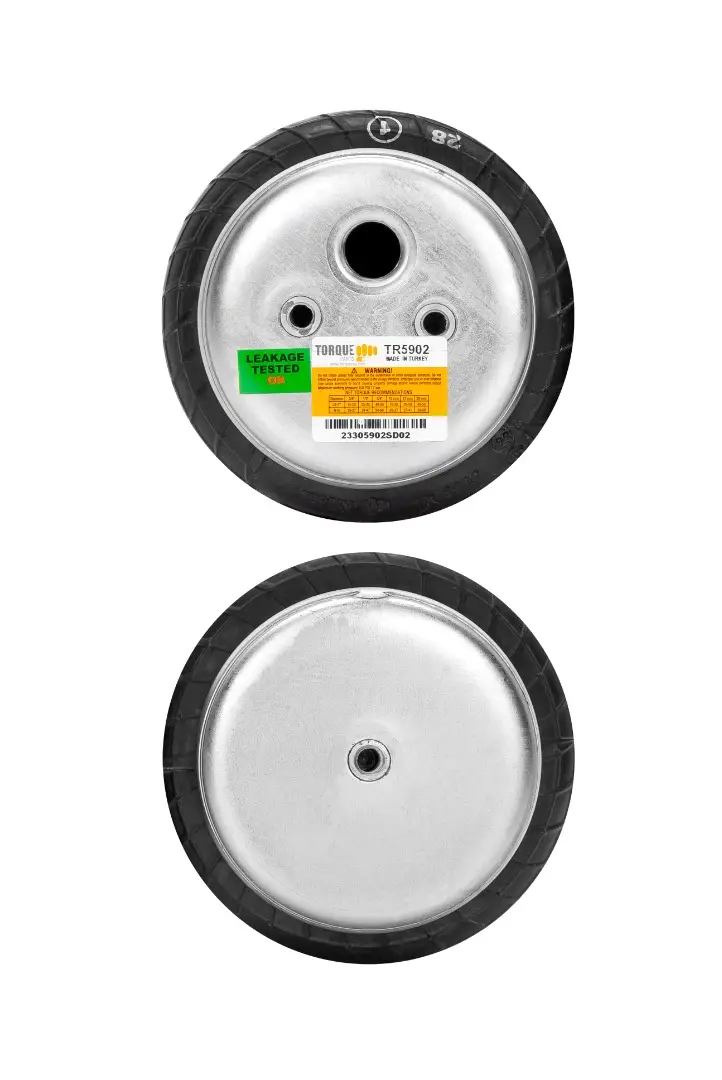

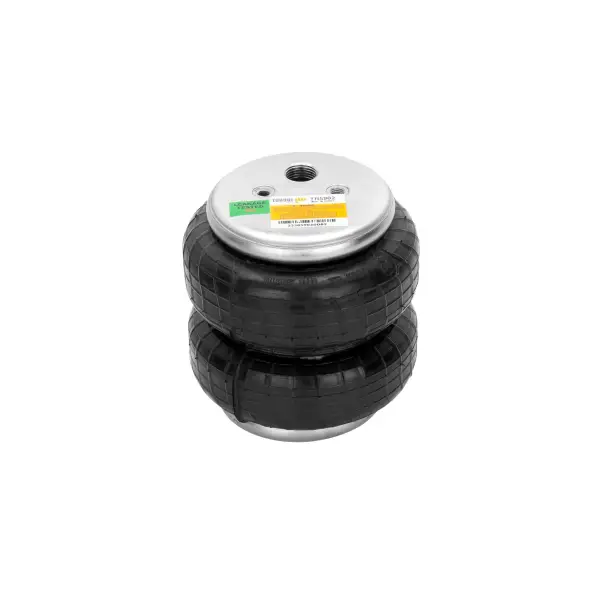

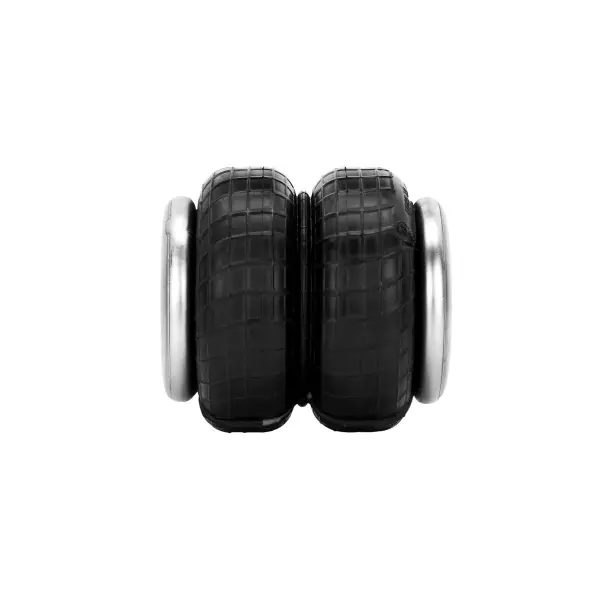

1/2" NPT Single Port Double Bellow Standard 2500 lbs Dominator Air Spring
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
Brand
Reference Numbers
Air Lift
58343
Maximum Extended Height:
10.5"
Compressed Height:
2.8"
Maximum Load at 100 PSI:
2,030 lbs
Maximum Diameter:
7"
Design Height:
5.5" - 7.5"
Air Fitting Size:
½"
Bottom Fastener:
3/8 16
Top Fastener:
3/8 16
Mounting Hole Center:
1.75" Top/Center/Bottom
