PRODUCT OVERVIEW
Heavy-duty rolling lobe air spring designed to restore suspension performance, improve ride quality, and provide reliable load support in commercial truck, bus, and trailer applications.
DIRECT OEM REPLACEMENT
Designed to replace Firestone 9469, W013589469, W01-358-9469; Contitech 68620, 9 10-14 A 103, 91014A103; Dayton 352-9469; Goodyear 1R11-223, 566223143; and Gillig Phantom Front 53-14006-002.
PREMIUM QUALITY CONSTRUCTION
Built with 4.5–5.00 mm thick rubber exceeding OEM standards, featuring 25% stronger 4140-grade steel studs and reinforced composite pistons for improved durability and performance.
ADVANCED RELIABILITY
Each unit undergoes rigorous leak testing after final assembly to ensure maximum air retention and long-lasting suspension performance in demanding environments.
IMPORTANT FITMENT NOTICE
Please verify your existing air spring part number before purchase. Matching by part number is strongly recommended, as buying based on vehicle make and model alone may lead to incorrect fitment.

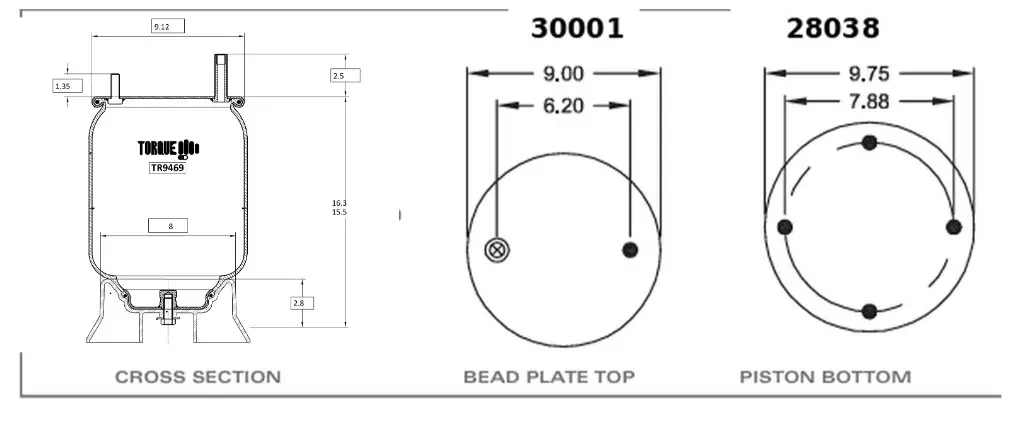

SPECIFICATIONS
Extended Height: 16.00 in
Compressed Height: 6.90 in
Top Plate Width: 9.00 in
Piston Width: 9.75 in
APPLICATION
Suitable for heavy-duty air suspension systems in trucks, buses, and trailers requiring this air spring configuration.
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Contitech
|
68620, 9 10‑14 A 103
|
|
Firestone
|
9469, W013589469, W01‑358‑9469
|
|
Goodyear
|
1R11223, 1R11‑223
|
|
Gillig Phantom, Front
|
53‑14006‑002
|
