PRODUCT OVERVIEW

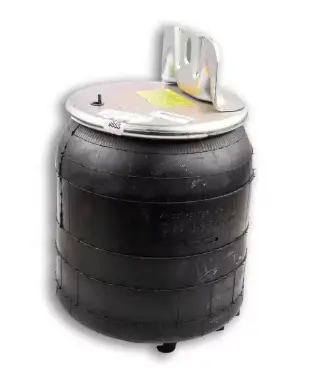

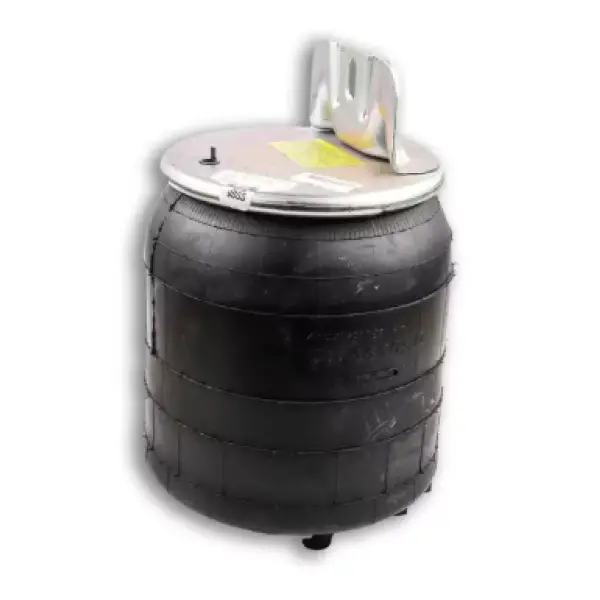

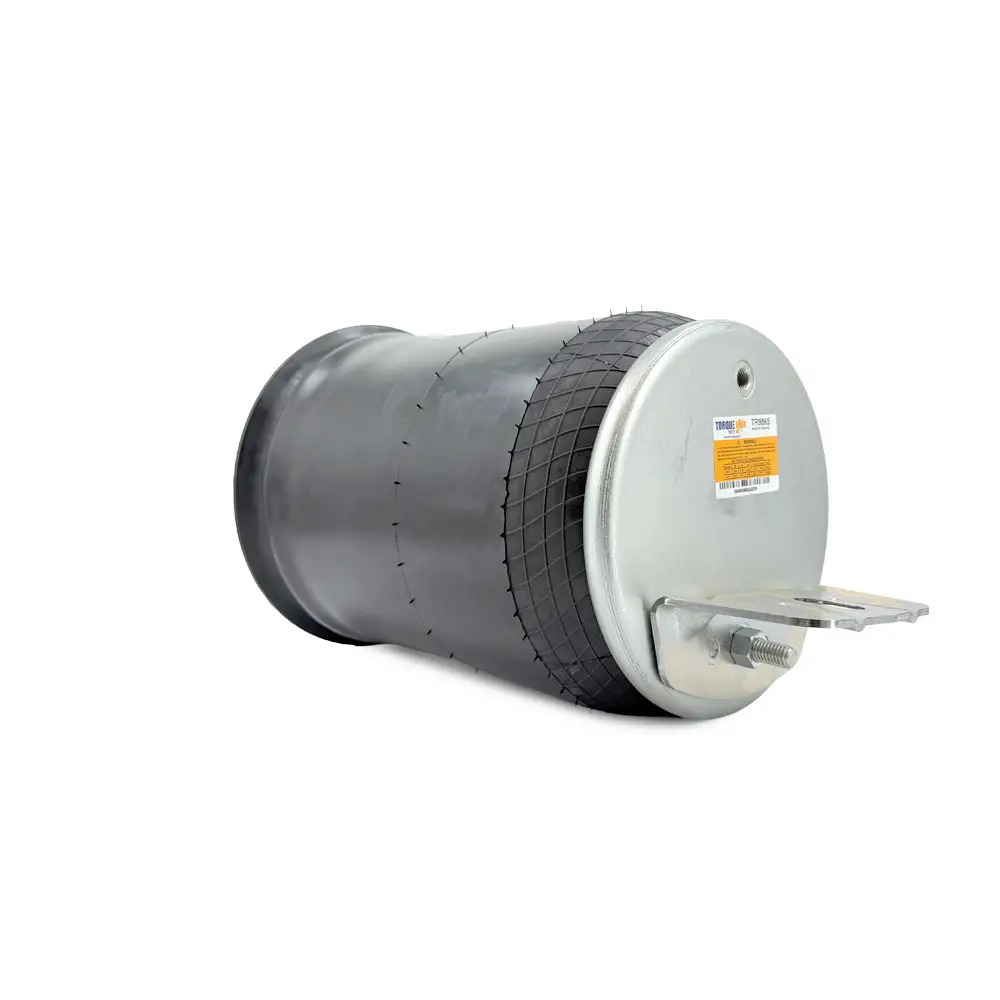

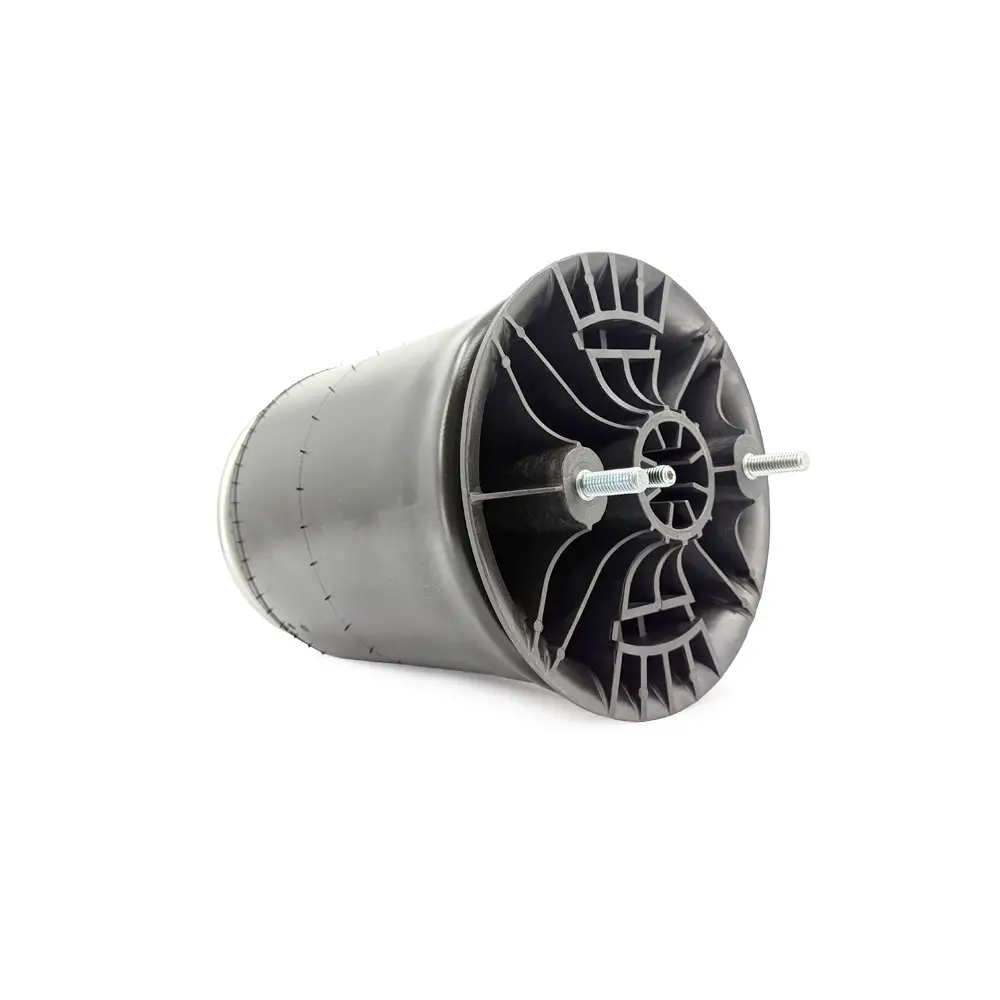

Heavy-duty rolling lobe / reversible sleeve air spring designed to restore proper suspension performance, load support, and ride stability in heavy-duty truck and trailer applications.
DIRECT OEM REPLACEMENT
Designed to replace multiple OE air spring part numbers including Firestone 9865, W01-358-9865; Hendrickson 670432, 67043-2; Contitech 75266, 9 10BS-17 P 1192; Automann AB1DF23K-9865; Mack 21217038; Volvo 23563385; and Dayton Parts 452-9865L.
PREMIUM QUALITY CONSTRUCTION
Built with 4.5–5.00 mm thick rubber exceeding OEM requirements. Features 25% stronger 4140-grade steel studs, reinforced composite pistons, and permanently engraved part numbers for easy identification.
ADVANCED DURABILITY
Manufactured with high-strength materials and tested through rigorous leak detection processes to ensure long-lasting reliability and consistent suspension performance.
3-YEAR UNLIMITED MILE WARRANTY
Backed by Torque’s industry-first 3-year unlimited mileage warranty for rolling lobe / reversible sleeve air springs. Product registration is required through the Torque Parts website after installation.
IMPORTANT FITMENT NOTICE
Air springs should always be purchased by part number rather than vehicle make or model. Please verify your original air bag number with your dealer and confirm it matches the replacement numbers listed.
SPECIFICATIONS
Extended Height: 23.20 in
Compressed Height: 5.90 in
Top Plate Width: 9.00 in
Piston Width: 9.00 in
Weight: 14.55 lbs
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Contitech
|
75266, 9 10BS‑17 P 1192
|
|
Firestone
|
9865, W013589865, W01‑358‑9865
|
|
Hendrickson Truck
|
67043002, 67043‑002
|
|
Mack
|
21217038
|
|
Volvo/White
|
23563385
|
|
Automann
|
AB1DF23K‑9865
|
| Property |
Value |
|
Applications
|
Hendrickson
|
|
Type
|
Rolling Lobe
|
|
Airspring Brand
|
Automann Phoenix
|
|
Automann Bellows #
|
1DF23K
|
|
Design Height (In)
|
12.50
|
|
Top Plate Hole/Stud Qty
|
2
|
|
Top Plate Dia. (A)
|
9.00
|
|
Top Plate C to C Dia. (B)
|
5.87
|
|
Bottom Plate Hole/Stud Qty
|
2
|
|
Bottom Plate C to C Dia. (D)
|
6.00"
|
|
Bottom Part #
|
BS16995
|
Hendrickson Rear Primaax & EX / Firemaax & EX
No inner box information is available for this product.
No outer box information is available for this product.
