Quality Assurance:
Durable Construction: 4.5-5.00 mm thick rubber that exceeds OEM requirements.
Enhanced Strength: 25% stronger 4140-grade steel studs and stronger composite pistons.
Easy Identification: Part number permanently engraved on the rubber for easy reference.
Leak-Free Performance: Highest leak test ratio after final assembly.
Product Specifications:
Extended Height: 25.60"
Compressed Height: 9.70"
Top Plate Width: 9.00"
Piston Width: 10.25"
Weight: 16.40 lbs
Compatibility:
This air spring bag is a direct replacement for the following part numbers:
Firestone W01-358-9101
Goodyear 1R12-103, 1R12-113, 1R12-116
Contitech 9 10-19 P 315
Watson & Chalin AS-0040
Holland (Neway) 905-57-008, 905-57-009, 905-57-043, 905-57-082
Reyco 883-01
Ridewell 003589101C
Triangle AS-8315
Automann 566.ER9101
AS9101, HDV9101, HD9101
Sampa SP559101-KP
Fitment Guide:
To ensure the correct fit for your vehicle, please:
Contact your dealer and obtain the part number.
Verify that this air spring bag replaces your current part number.

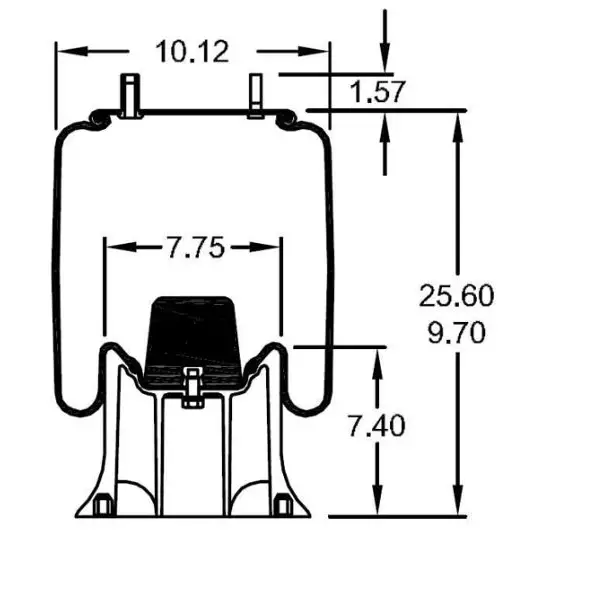

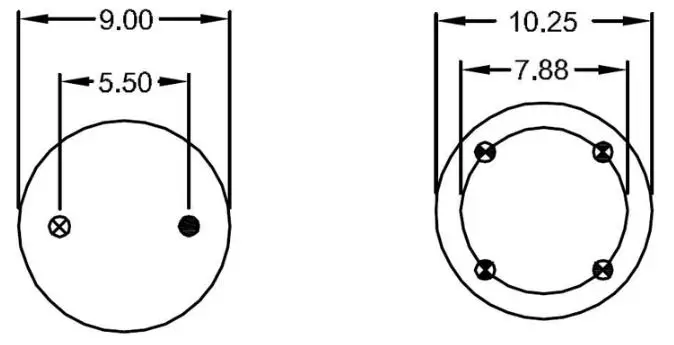

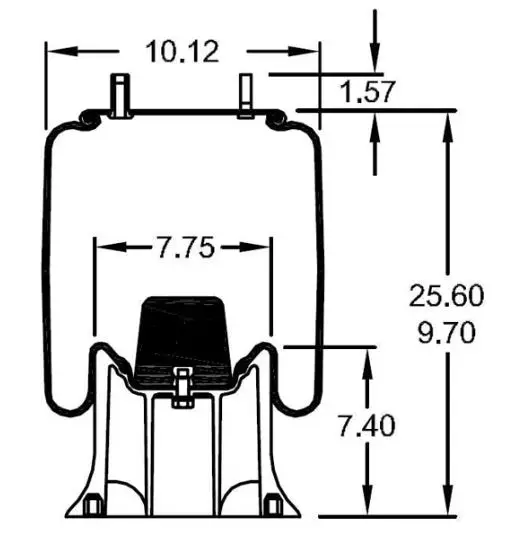

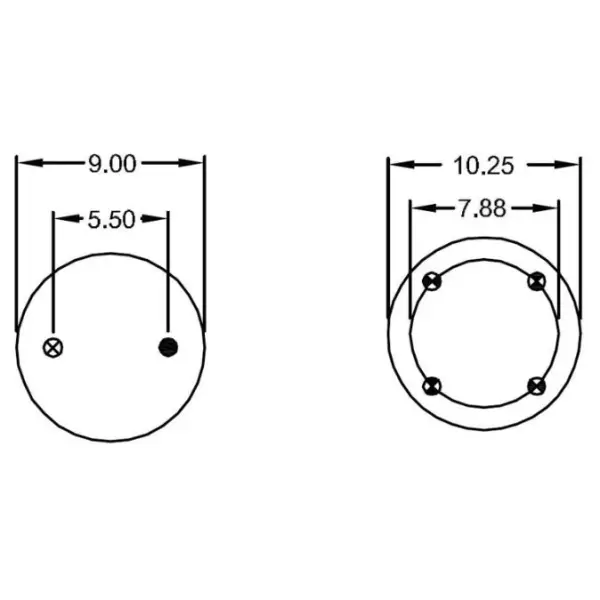

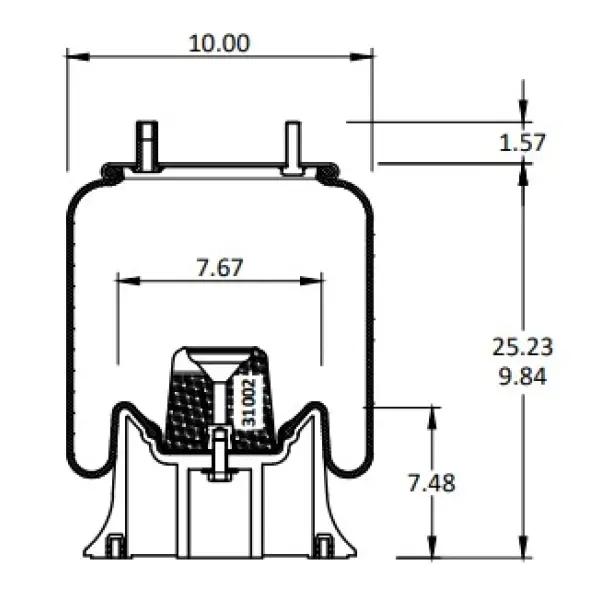

Refer to the diagram picture and confirm that all specifications match your existing air bag.
Important Note:
Avoid common mistakes by not purchasing based on make and model alone. Always verify the part number and specifications to ensure compatibility.
Why Choose TORQUE?
Superior Quality: Exceeds OEM standards with premium materials and construction.
Enhanced Durability: Stronger rubber, steel studs, and composite pistons for long-lasting performance.
Extensive Compatibility: Replaces multiple part numbers for various brands.
Industry-Leading Warranty: 3-year unlimited mile warranty for added peace of mind.
Expert Support: Contact us for any fitment or warranty queries.
Upgrade your Watson & Chalin or SAF Holland suspension system with the TORQUE Air Spring Bag, designed for durability, performance, and peace of mind. Order now and experience the difference!
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
IHC
|
554768C1
|
|
Loadguard
|
SC2038
|
|
Mc Neilus&Man
|
23AS83
|
|
Neway
|
90044201, 90044701, 90054218, 90057008, 90557008, 90557009, 90557043, 90557082, AR14151F, AR14151G
|
|
Oshkosh
|
1KK36
|
|
Phoenix
|
10590
|
|
Reyco
|
1288301, 12883‑01, 883‑01
|
|
Ridewell
|
1003589101C, S5828C, S740C, 003589101C
|
|
Taurus
|
AS5049101
|
|
Triangle
|
8315, AS‑8315
|
|
Truckstell
|
63647
|
|
Volvo/White
|
3130490, 85101149
|
|
Watson & Chalin
|
AS0040, AS‑0040
|
|
Sampa
|
SP559101‑KP, SP 559101‑KP, SP559101KP
|
|
Automann
|
566.ER9101
|
|
Contitech
|
64279, 910‑19P315, 9 10‑19 P 315
|
|
East Trailer
|
5181508214, 518‑15082‑14
|
|
Firestone
|
9101, W013589101, W01‑358‑9101
|
|
Goodyear
|
1R12103, 1R12‑103, 1R12113, 1R12‑113, 1R12‑116
|
|
Hendrickson
|
B3842, B‑3842, S10443, S3842, S‑3842
|
|
Holland (Neway)
|
905‑57‑008, 905‑57‑009, 905‑57‑043, 905‑57‑082
|
| Property |
Value |
|
Extended Height
|
25.60"
|
|
Compressed Height
|
9.70"
|
|
Top Plate Width
|
9.00"
|
|
Piston Width
|
10.25"
|
|
Weight
|
16.4 lbs
|
Neway / Holland Trailer AR41, 45, 75, 85 Air
Neway / Holland Trailer AR120, 120L, AR125, 125L & Also US (Underslung) & AR165
Neway / Holland Lift (Trailer) ART500/505/541/550/551/555
Ridewell Trailer RAR221 Air Ride
Ridewell Trailer RAR240, 240LKS, 243 Monopivot, RAR247
W&C (Watson & Chalin) TA-250 Series
W&C (Watson & Chalin) TA-300 Series
