The Ultimate Air Spring Bag for Holland Suspension Systems!
Ensure optimal performance and durability for your Holland suspension system with the TORQUE Air Spring Bag. Designed as a direct replacement for Firestone 9121, W01-358-9121, Holland 905-57-019, Goodyear 1R13-039, and other compatible models, this high-quality air spring bag exceeds OEM requirements. Built with premium materials, including 4.5-5.00 mm thick rubber, 25% stronger 4140-grade steel studs, and stronger composite pistons, it’s engineered to handle heavy loads and harsh conditions. Backed by an industry-leading 3-year unlimited mile warranty, this air spring bag is the perfect solution for reliable suspension performance.
Quality Assurance:
Durable Construction: 4.5-5.00 mm thick rubber that exceeds OEM requirements.
Enhanced Strength: 25% stronger 4140-grade steel studs and stronger composite pistons.

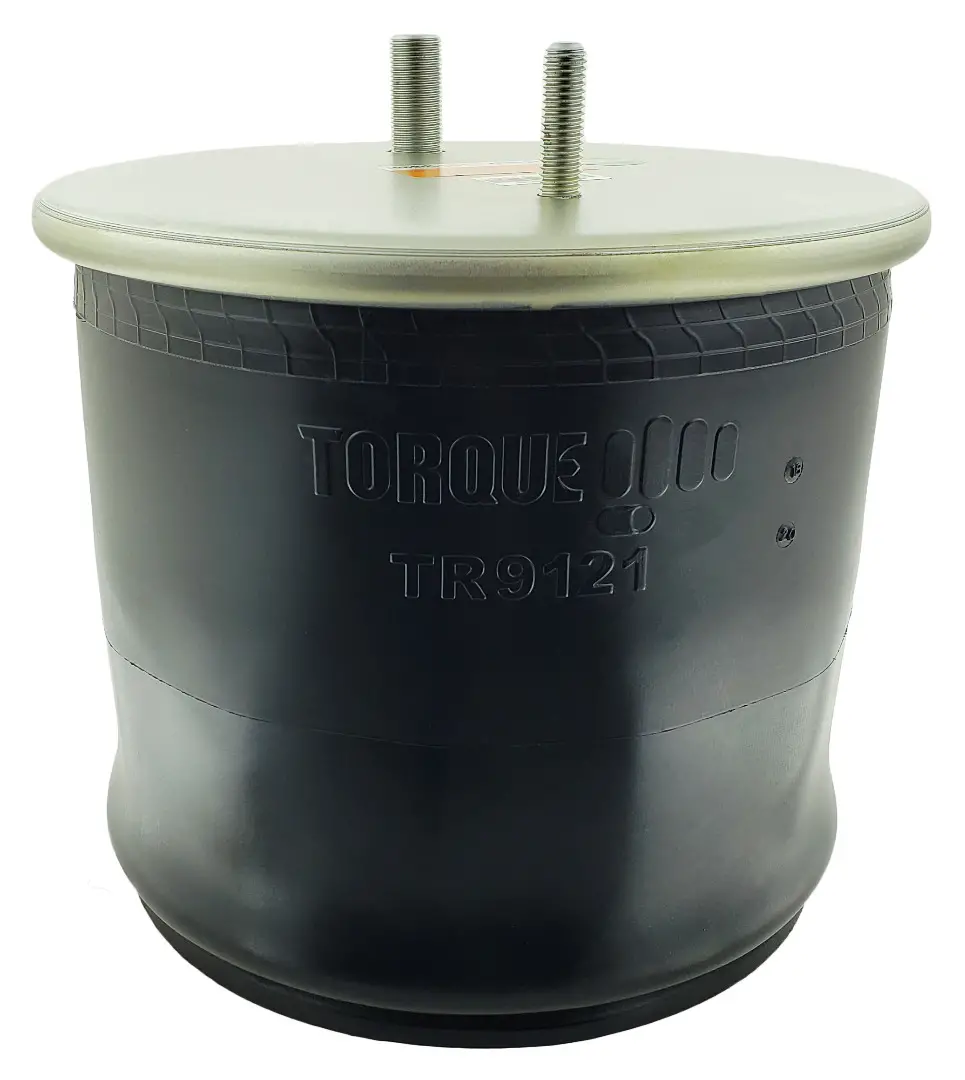

Easy Identification: Part number permanently engraved on the rubber for easy reference.
Leak-Free Performance: Highest leak test ratio after final assembly.
Product Specifications:
Extended Height: 21.70"
Compressed Height: 7.20"
Top Plate Width: 11.31"
Piston Width: 10.25"
Weight: 21.50 lbs
Compatibility:
This air spring bag is a direct replacement for the following part numbers:
Firestone W01-358-9121
Goodyear 1R13-039, 1R13-043, 1R13-049
Holland (Neway) 905-57-019, 905-57-052, 905-57-078
Contitech 11 10 5-17 A 317
Reyco 12882-02
Ridewell 1003589121C
Triangle AS-8317
Watson & Chalin AS-0013
Automann AB1D28G-9121
AS9121, HDV9121, HD9121
Sampa SP559121-KP
Fitment Guide:
To ensure the correct fit for your vehicle, please:
Contact your dealer and obtain the part number.
Verify that this air spring bag replaces your current part number.

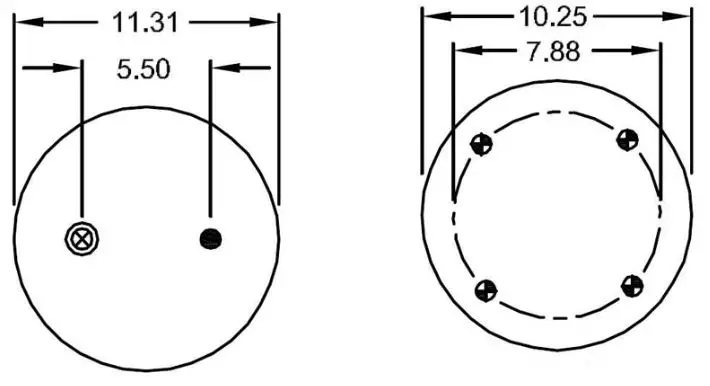

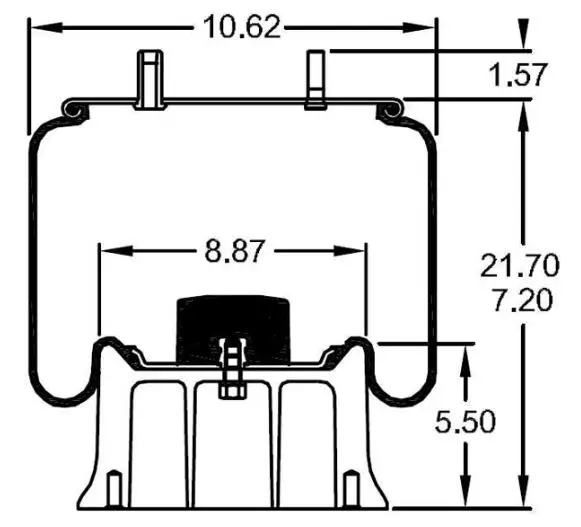

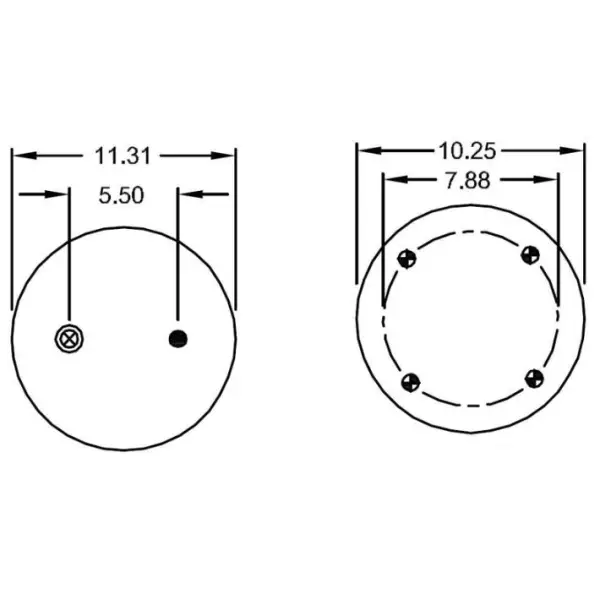

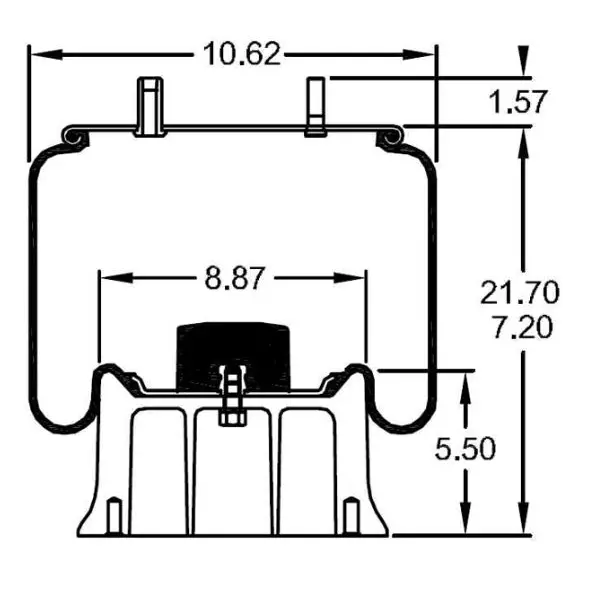

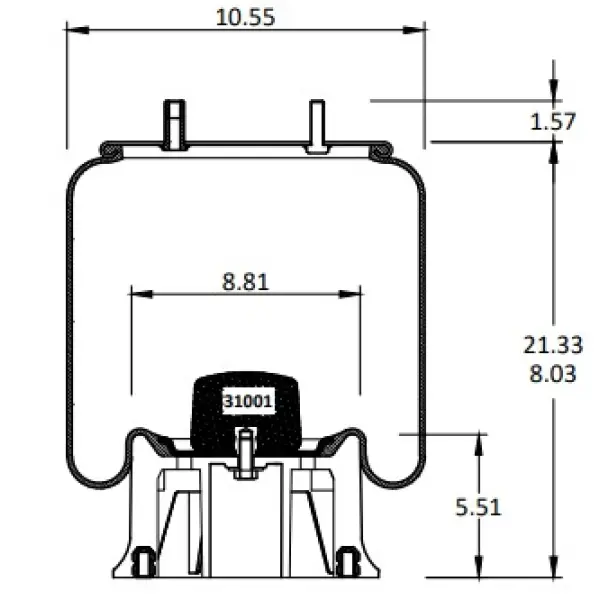

Refer to the diagram picture and confirm that all specifications match your existing air bag.
Important Note:
Avoid common mistakes by not purchasing based on make and model alone. Always verify the part number and specifications to ensure compatibility.
Why Choose TORQUE?
Superior Quality: Exceeds OEM standards with premium materials and construction.
Enhanced Durability: Stronger rubber, steel studs, and composite pistons for long-lasting performance.
Extensive Compatibility: Replaces multiple part numbers for various brands.
Industry-Leading Warranty: 3-year unlimited mile warranty for added peace of mind.
Expert Support: Contact us for any fitment or warranty queries.
Upgrade your Holland suspension system with the TORQUE Air Spring Bag, designed for durability, performance, and peace of mind. Order now and experience the difference!
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Automann
|
AB1DK20H‑9541
|
|
Firestone
|
AB1D28G‑9121
|
|
Contitech
|
11 10.5‑17 A 317, 161018, 64272
|
|
Firestone
|
9121, 9141, W013589121, W01‑358‑9121
|
|
Goodyear
|
1R13039, 1R13‑039, 1R13047, 1R13‑047, 1R13‑043, 1R13‑049
|
|
Hendrickson
|
B3411, S13160, S‑13160
|
|
Holland (Neway)
|
905‑57‑019, 905‑57‑052, 905‑57‑078
|
|
IHC
|
554773C1
|
|
Loadguard
|
SC2040
|
|
Mc Neilus&Man
|
1138978
|
|
Neway
|
90557019, 90557052, 90557078, 90557083, 90557110, 90557324, AR11151G
|
|
Oshkosh
|
1KK39, 2HE106
|
|
Reyco
|
1288202, 12882‑02
|
|
Ridewell
|
1003589121C, S3052C
|
|
Terex
|
14667
|
|
Triangle
|
8317, AS‑8317
|
|
Volvo
|
85101159
|
|
Watson & Chalin
|
AS‑0013, AS0013, AS‑0013
|
|
Sampa
|
SP559121‑KP, SP 559121‑KP, SP559121KP
|
| Property |
Value |
|
Extended Height
|
21.70"
|
|
Compressed Height
|
7.20"
|
|
Top Plate Width
|
11.31"
|
|
Piston Width
|
10.25"
|
|
Weight
|
21.5 lbs
|
Neway / Holland Rear ARDST (123, 244, 246, 250)-6, ARDSTM/L (123, 246)-6
Neway / Holland Trailer AR41, 45, 75, 85
Neway / Holland Trailer AR70, AR70A, AR80, AR95, AR95A; AR955, AR955A & AR955HD
Neway / Holland Trailer AR120, 120L, AR125, 125L & Also US (Underslung) & AR165
Page Lift Axle LM-2000
Watson & Chalin Trailer TA 250, 251, 255, 280, 300 (Old Style) Trailer Air
Watson & Chalin Trailer TA250T, U, TA300T, U Trailer Air (New Style) w/Multifunction Bushing & Ubolt Axle Mount
