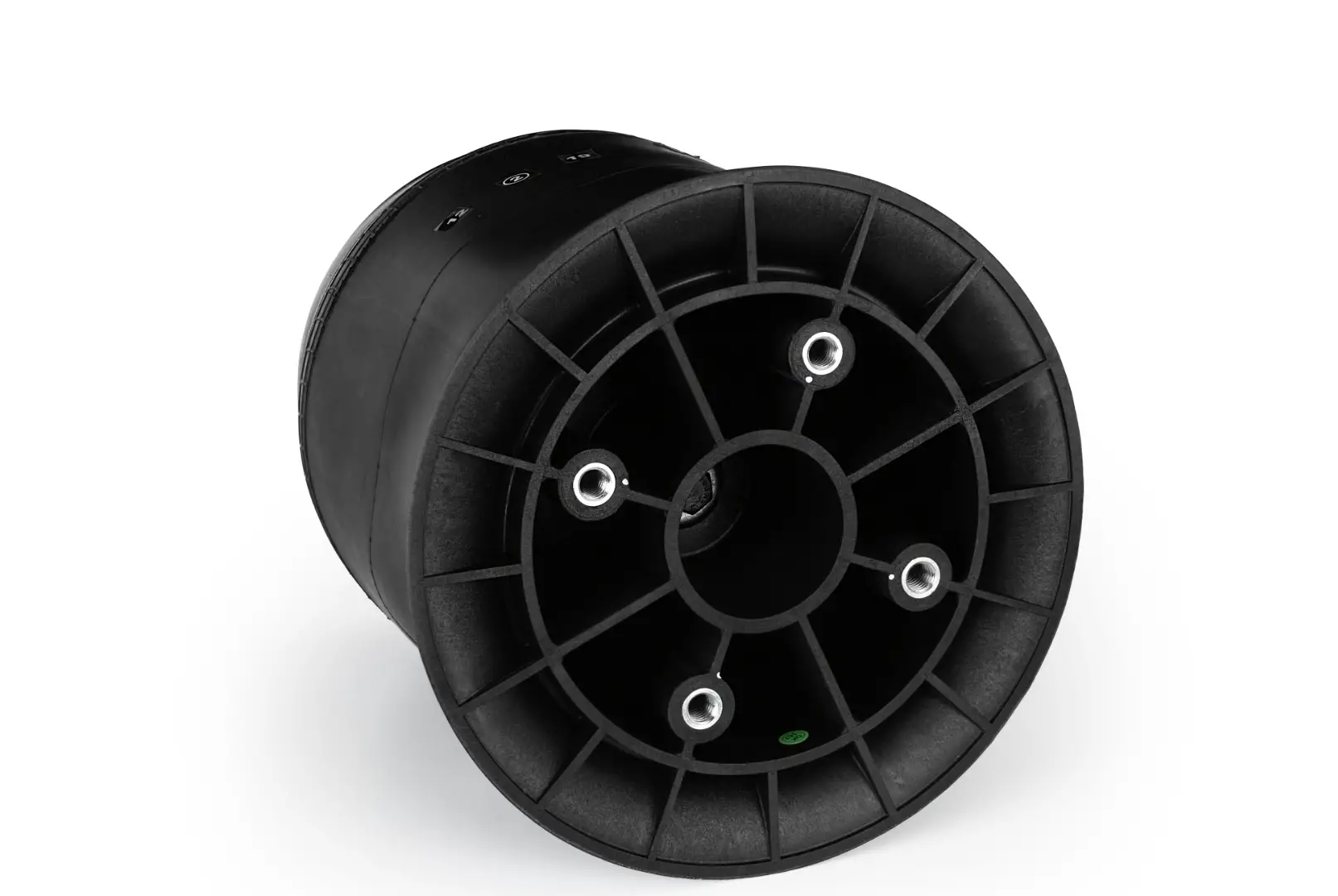

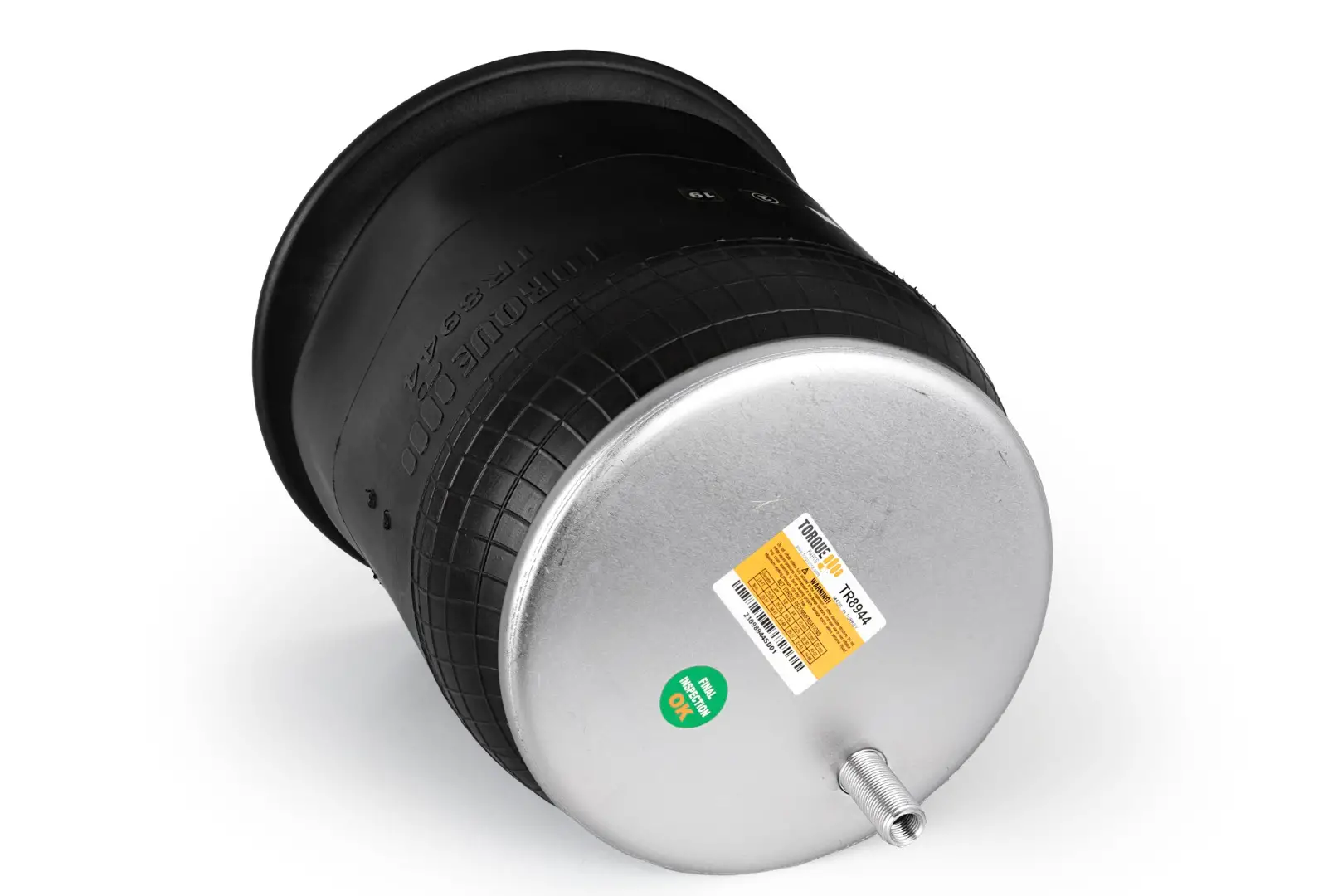

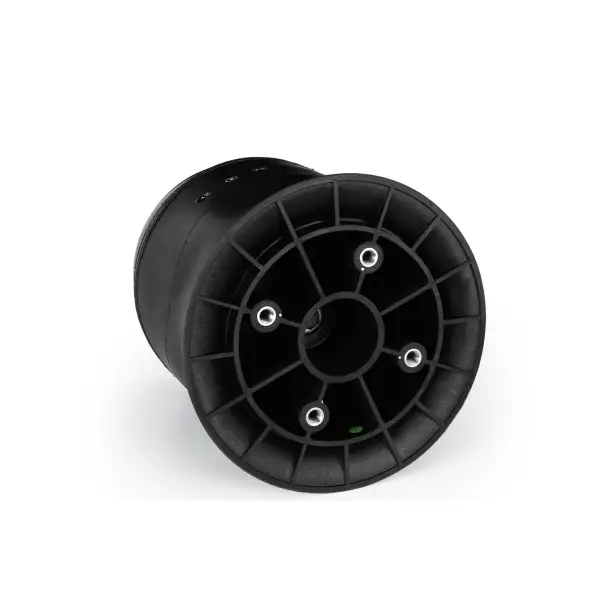

Air Spring for Hendrickson Trailer
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Contitech
|
161167, 64401, 9 10‑17.5 P 436
|
|
ContiTech
|
9 10.1‑75 P 436
|
|
Firestone
|
8944, W013588944, W01‑358‑8944, W013589015, W01‑358‑9015
|
|
Goodyear
|
1R12271, 1R12‑271, 1R12366, 1R12‑366
|
|
Hendrickson
|
C20217, C‑20217, S20217, S‑20217, S20217 (HT‑190U)
|
|
Loadguard
|
SC2756
|
|
Triangle
|
8436
|
|
Sampa
|
SP558944‑KP, SP 558944‑KP, SP558944KP
|
| Property |
Value |
|

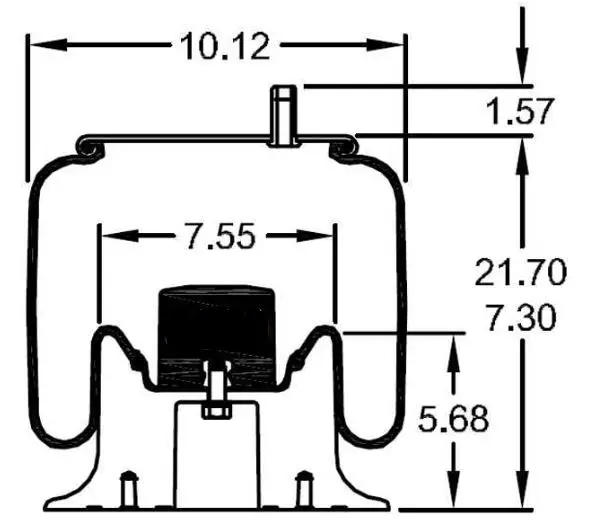

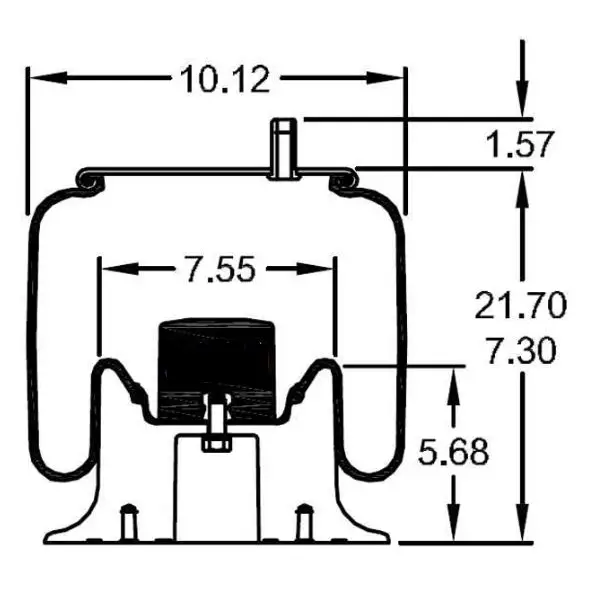

Extended Height
|
21.90"
|
|
Compressed Height
|
7.40"
|
|

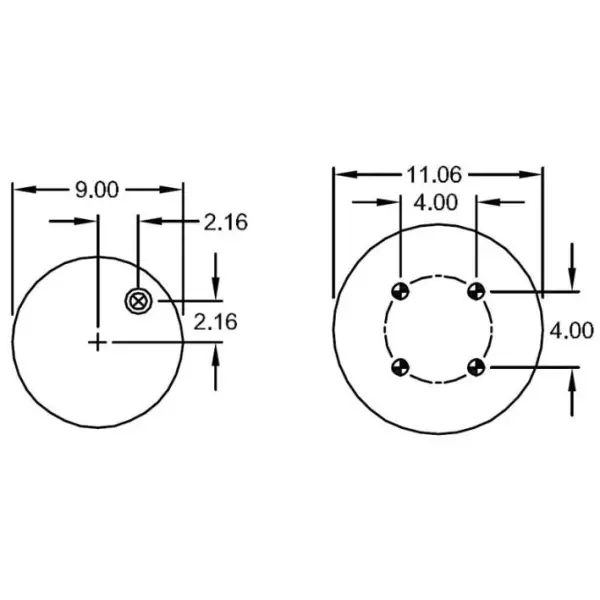

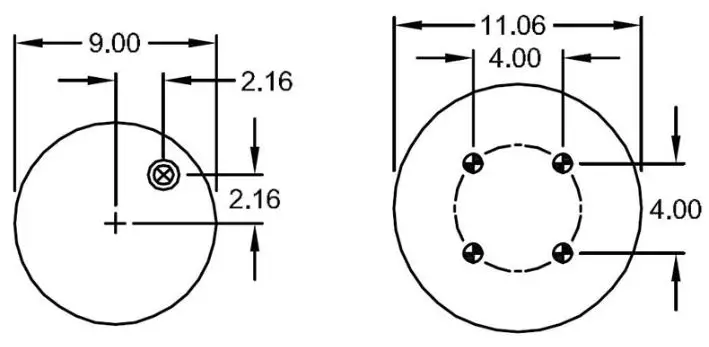

Top Plate Width
|
9.00"
|
|
Piston Width
|
11.06"
|
|
Weight
|
15.4 lbs
|
| Longest Side | 44.09" |
| Median Side | 44.09" |
| Shortest Side | 44.09" |
| Weight | 16.08 lbs |
