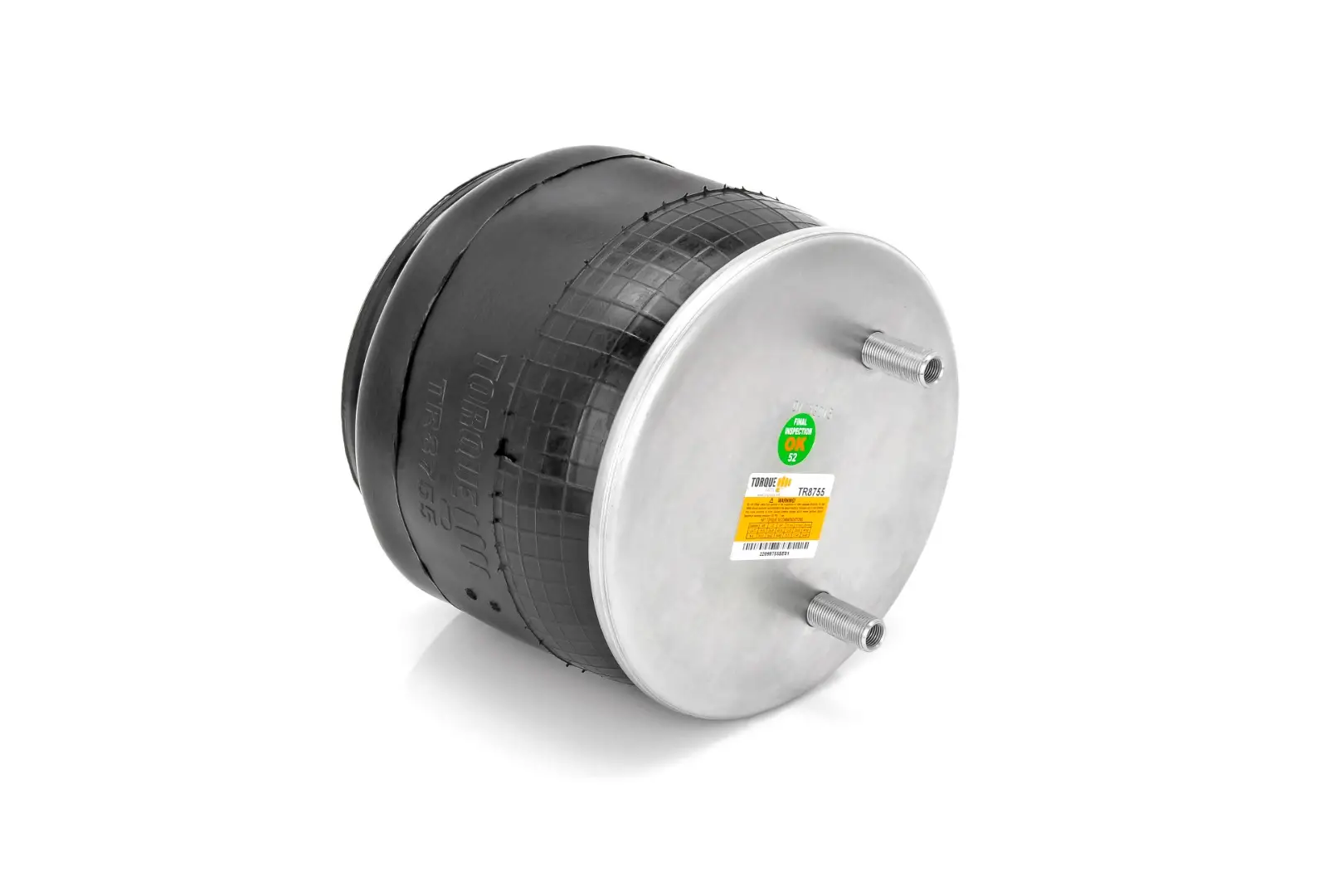

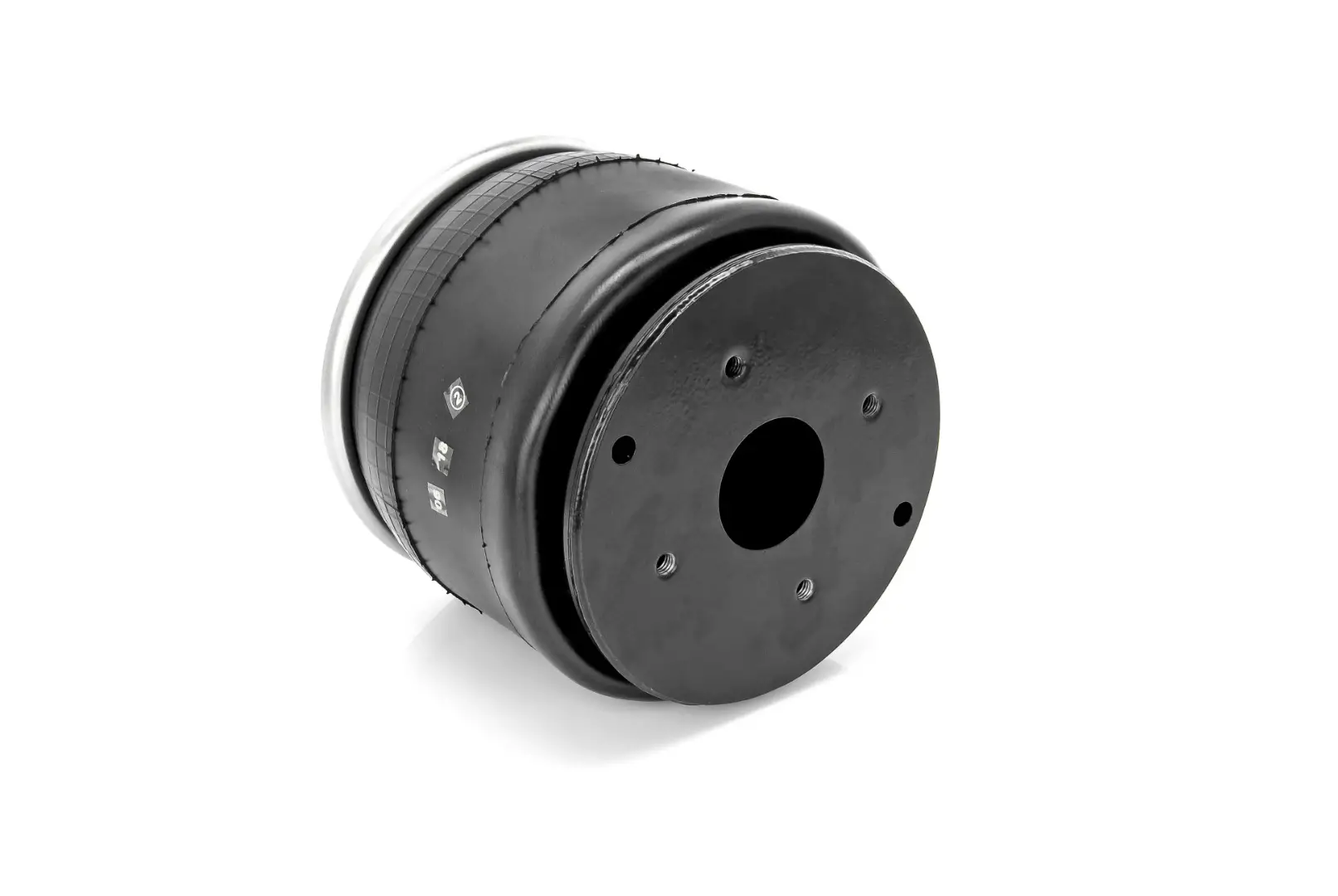

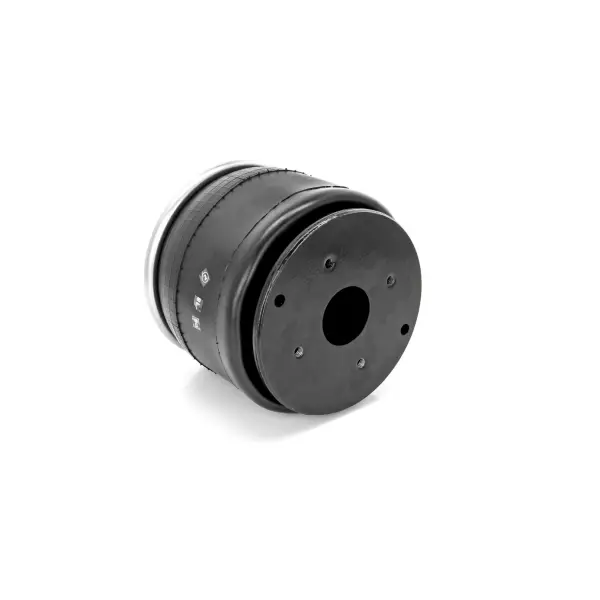

Air Spring for Hendrickson
Contitech: |
10 10-15 P 522, 1010-15S522, 64397, 10 10-15 S 522 |
Firestone: |
8710, 8755, 8756, W013588755, W01-358-8755, W013588756, W01-358-8756, W014558755, W01-455-8755, W01-358-8710 |
Goodyear: |
1R13124, 1R13-124 |
Hendrickson: |
C21623, C22045, C-22045, S21623, S-21623, S22045, S-22045 |
Neway: |
G2298755300 |

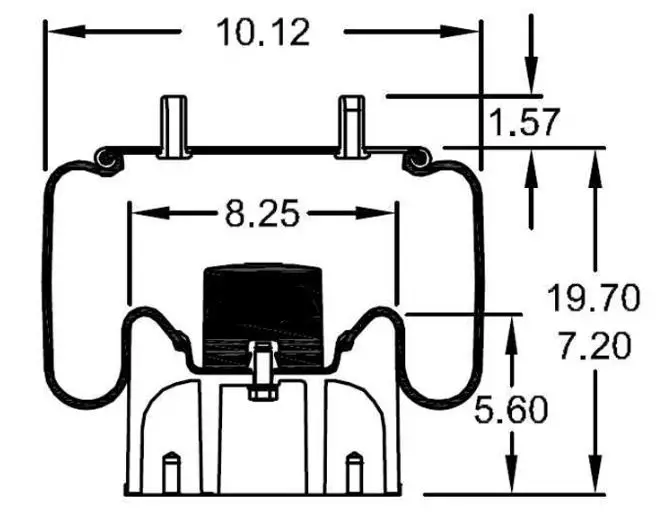

Extended Height: |
19.70" |
Compressed Height: |
7.20" |

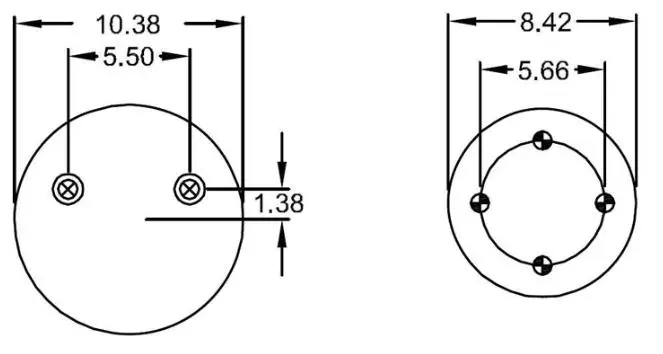

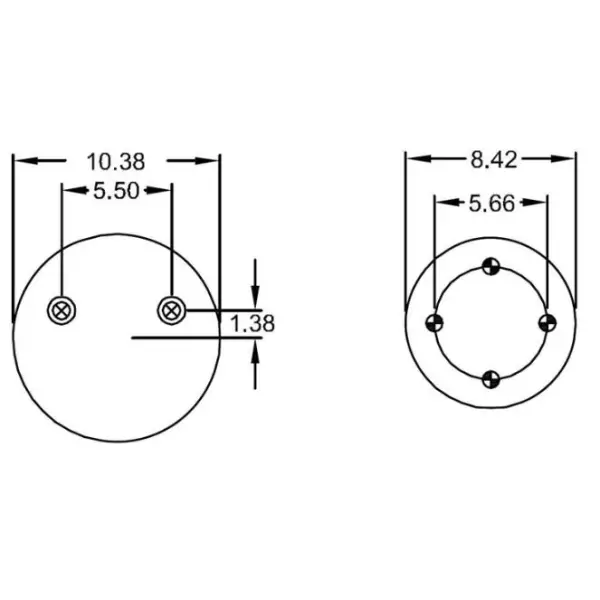

Top Plate Width: |
10.38" |
Piston Width: |
8.42" |
Weight: |
24.5 lbs |
Longest Side | 10.24 in. |
Median Side | 10.24 in. |
Shortest Side | 9.96 in. |
Weight | 24.08 lbs. |
