The Ultimate Air Spring Bag for Hendrickson Trailers!
Ensure optimal performance and durability for your Hendrickson trailer’s suspension with the TORQUE Air Spring Bag. Designed as a direct replacement for Firestone 9122, W01-358-9122, Hendrickson S-3467, S-3830, C-3467, C-3830, and other compatible models, this high-quality air spring bag exceeds OEM requirements. Built with premium materials, including 4.5-5.00 mm thick rubber, 25% stronger 4140-grade steel studs, and stronger composite pistons, it’s engineered to handle heavy loads and harsh conditions. Backed by an industry-leading 3-year unlimited mile warranty, this air spring bag is the perfect solution for reliable suspension performance.
Quality Assurance:
Durable Construction: 4.5-5.00 mm thick rubber that exceeds OEM requirements.
Enhanced Strength: 25% stronger 4140-grade steel studs and stronger composite pistons.
Easy Identification: Part number permanently engraved on the rubber for easy reference.
Leak-Free Performance: Highest leak test ratio after final assembly.
Product Specifications:
Extended Height: 27.30"
Compressed Height: 8.70"
Top Plate Width: 11.31"
Piston Width: 10.30"
Weight: 21.00 lbs
Compatibility:
This air spring bag is a direct replacement for the following part numbers:
Firestone W01-358-9122
Goodyear 1R13-038, 1R14-045, 1R13-048, 1R14-060
Hendrickson Canada B-12514-008, B-12514-010
Hendrickson S-3467, S-3830, C-3467, C-3830
Contitech 11 10 5-21 A 313
Holland (Neway) 905-57-020, 905-57-071, 905-57-076, 905-57-077, 905-57-185
Reyco 12883-02
Ridewell 1003589122C
Triangle 8313
Watson & Chalin AS-0023
AS9122, HDV9122, HD9122
Sampa SP559122-KP
Fitment Guide:
To ensure the correct fit for your trailer, please:
Contact your dealer and obtain the part number.
Verify that this air spring bag replaces your current part number.

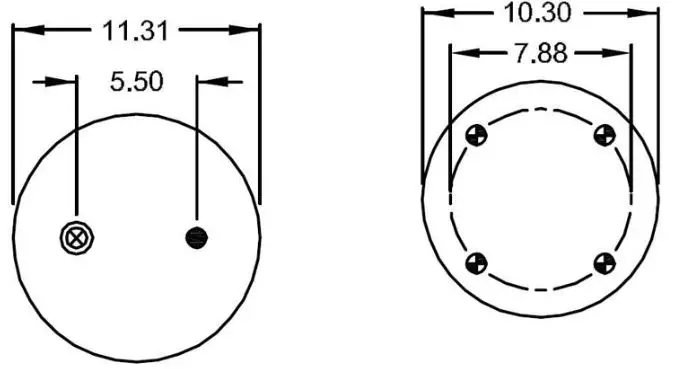

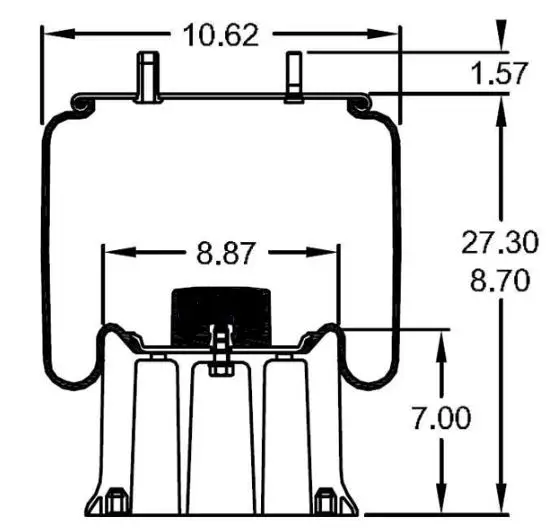

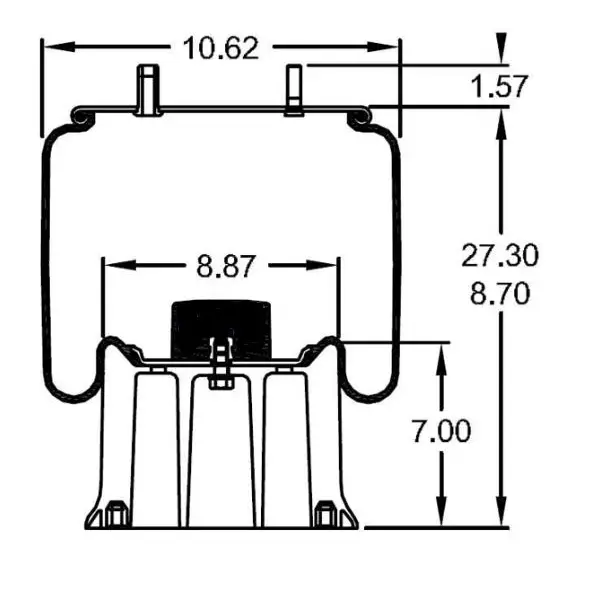

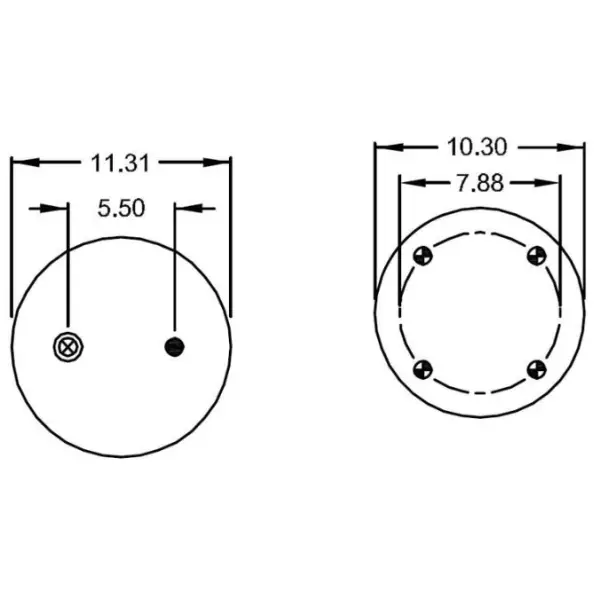

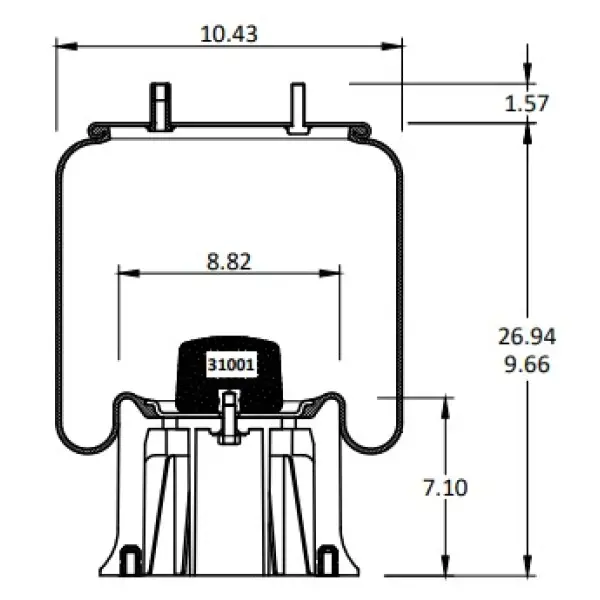

Refer to the diagram picture and confirm that all specifications match your existing air bag.
Important Note:
Avoid common mistakes by not purchasing based on make and model alone. Always verify the part number and specifications to ensure compatibility.
Why Choose TORQUE?
Superior Quality: Exceeds OEM standards with premium materials and construction.
Enhanced Durability: Stronger rubber, steel studs, and composite pistons for long-lasting performance.
Extensive Compatibility: Replaces multiple part numbers for various brands.
Industry-Leading Warranty: 3-year unlimited mile warranty for added peace of mind.
Expert Support: Contact us for any fitment or warranty queries.
Upgrade your Hendrickson trailer’s suspension system with the TORQUE Air Spring Bag, designed for durability, performance, and peace of mind. Order now and experience the difference!
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Contitech
|
11 10.5‑21 A 313, 161019, 64273
|
|
Eveley
|
RA19544
|
|
Firestone
|
8792, 9122, 9142, W01‑358‑8792, W013589122, W01‑358‑9122
|
|
Goodyear
|
1R13038, 1R13‑038, 1R14045, 1R14‑045, 1R13‑048, 1R14‑060
|
|
Hendrickson
|
365142, 365148, B3467, B‑3467, B3830, B‑3830, S‑12514‑008, S‑12514‑010, S3467, S‑3467, S3830, S‑3830
|
|
Hendrickson Canada
|
B‑12514‑008, B‑12514‑010
|
|
Holland (Neway)
|
905‑57‑020, 905‑57‑071, 905‑57‑076, 905‑57‑077, 905‑57‑185
|
|
IHC
|
1681748C1, 168749C1, 554772C1
|
|
Ingersoll
|
65351301, 653513‑01
|
|
Sampa
|
SP559122‑KP, SP 559122‑KP, SP559122KP
|
| Property |
Value |
|
Extended Height
|
27.30"
|
|
Compressed Height
|
8.70"
|
|
Top Plate Width
|
11.31"
|
|
Piston Width
|
10.30"
|
|
Weight
|
21.0 lbs
|
Hendrickson Turner Trailer T Series – Underslung; T4, 6, 9, 23 Overslung; T15, T17
Hendrickson Turner Trailer HT190U, 250U, 250US, 300U, 300US
Hendrickson Turner Trailer HT250U-Y, HT250YB, HT300YB, HT250YS, Y-Beam Welded & QUIK-ALIGN®
Neway / Holland Trailer AR70, AR70A, AR80, AR95, AR95A; AR955, AR955A & AR955HD
Neway / Holland Trailer AR120, 120L, AR125, 125L & Also US (Underslung) & AR165
Neway / Holland Trailer RL196, 196A, 228, RL230, RL250, RL300 Overslung
Neway / Holland Trailer RLU228 (3" & 4" Axle Up & AMS), RLU228 (ARU-93), RLU250 (STD), RL300 Underslung
Reyco / Transpro Trailer 23, 25, 30AR Air Ride
Watson & Chalin Trailer TA250T, U, TA300T, U Trailer Air (New Style) w/Multifunction Bushing & Ubolt Axle Mount
| Inner Box |
| Longest Side |
Median Side |
Shortest Side |
Weight |
| 13.39" |
11.22" |
11.22" |
46.43 lbs |
| Outer Box |
| Quantity |
Longest Side |
Median Side |
Shortest Side |
Weight |
| 44 |
44.09" |
44.09" |
45.28" |
1,005.31 lbs |
