TYPE

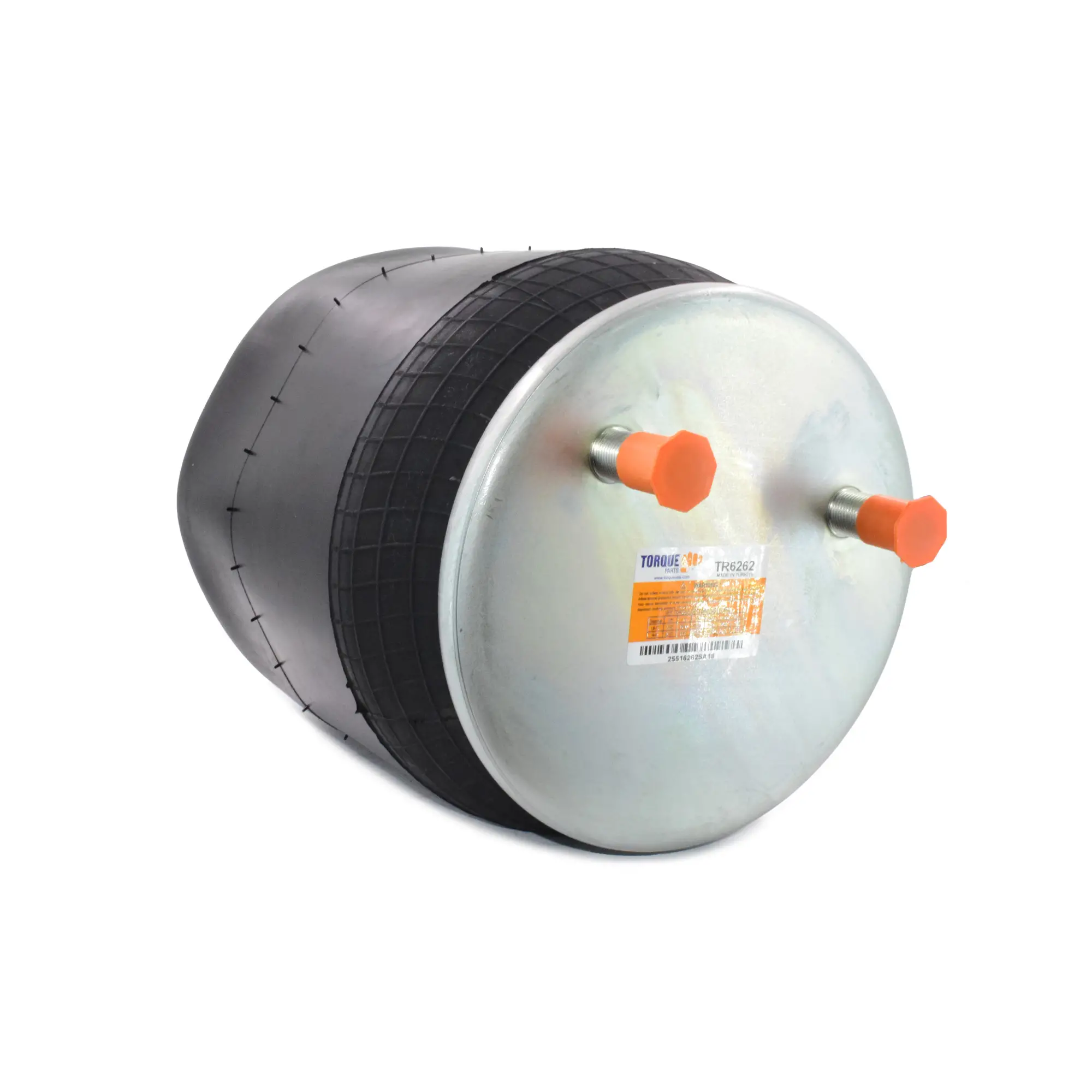

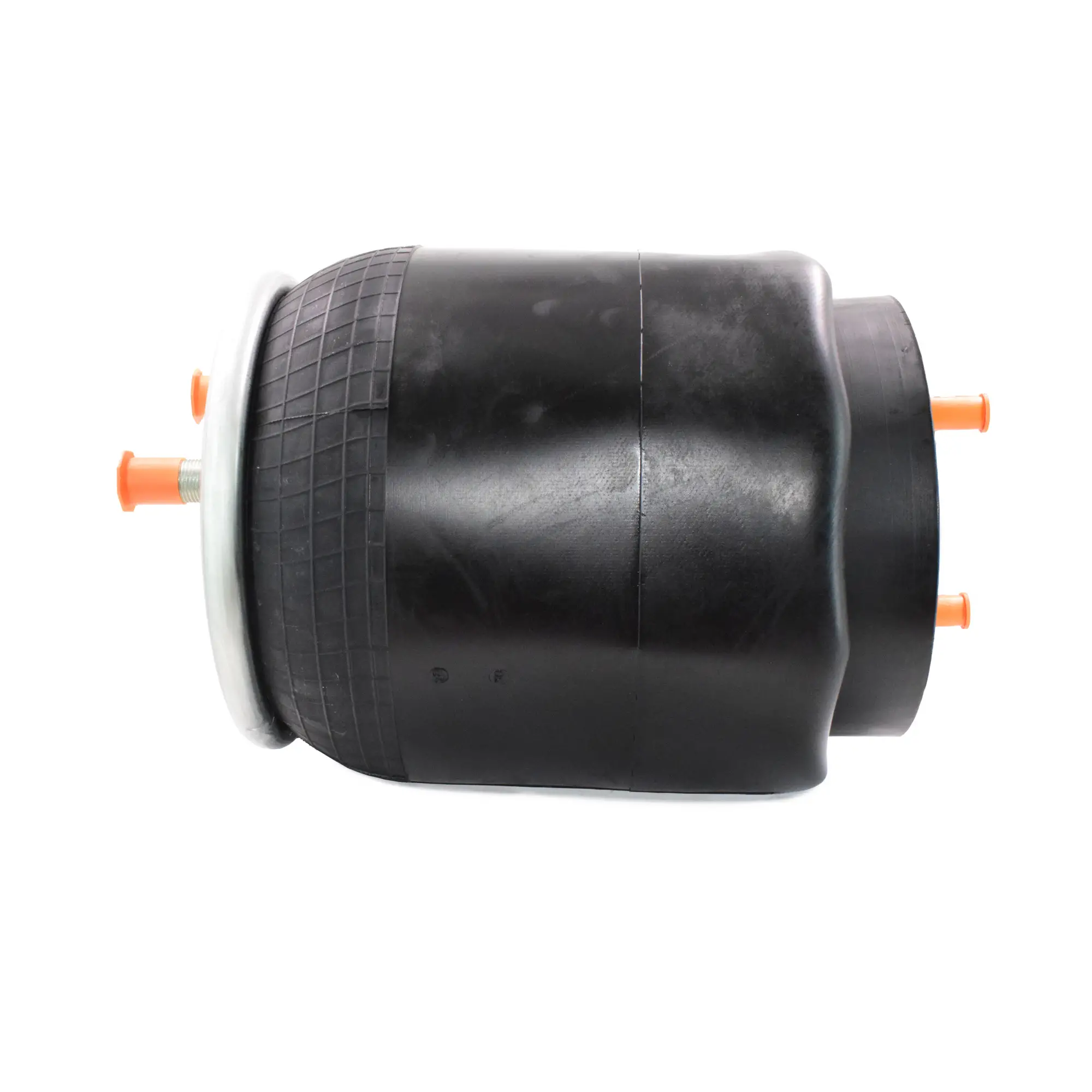

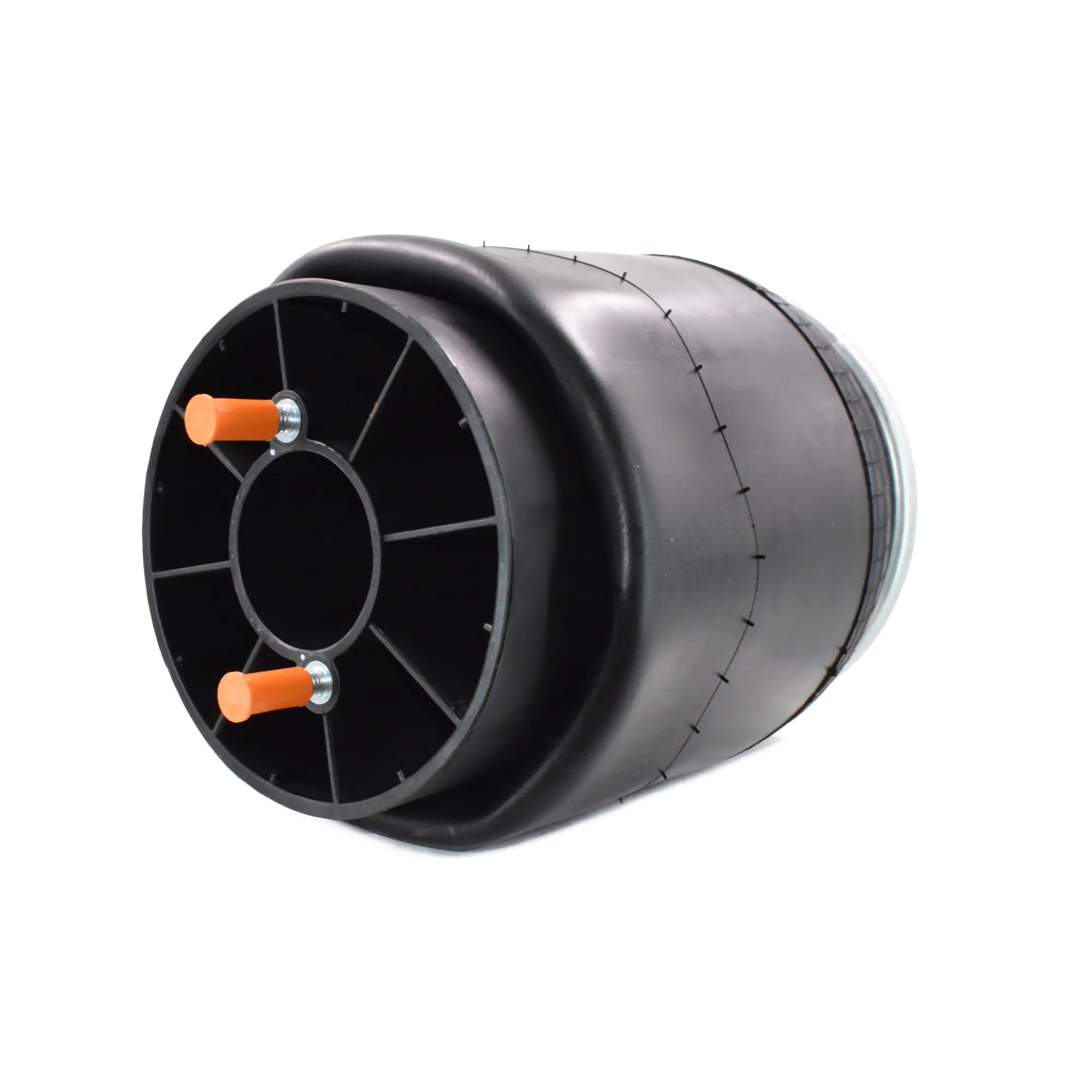

Heavy duty rolling lobe / reversible sleeve air spring engineered for superior load support, durability, and long service life in commercial suspension systems.
QUALITY & DESIGN
Part number is permanently engraved on the rubber for easy identification. Features 4.5–5.00 mm thick rubber exceeding OEM requirements, 25% stronger 4140-grade steel studs, reinforced composite pistons, and the highest leak test ratio after final assembly.
SPECIFICATIONS
Extended height: 22.00 inches. Compressed height: 8.20 inches. Top plate width: 9.00 inches. Piston width: 8.05 inches. Approximate weight: 16.00 lbs.
REPLACEMENT
Replaces Firestone 6231, 5434, 6262, W01-358-6231, W01-358-6262, W013586262; Meritor FS6262, FS6231; Triangle 8831; Automann AB1DK23P-6262; ContiTech 910-17.5P831.
FITMENT
Please contact your dealer to confirm the correct part number for your application. Verify replacement by part number or compare all specifications with your original air spring. Buying an air spring by make and model alone is not recommended.
Warning: California Proposition 65
Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
www.P65Warnings.ca.gov
| Brand |
Reference Numbers |
|
Contitech
|
566.CT65831
|
|
Econoride
|
566ER6262
|
|
Firestone
|
W01‑358‑6262, 6262, W013586262
|
| Property |
Value |
|
Extended Height
|
20.50"
|
|
Compressed Height
|
8.20"
|
|
Top Plate Width
|
9.00"
|
|
Piston Width
|
8.05"
|
|
Weight
|
14.34 lbs
|
Meritor Trailer RFS23T, RFS25T, RFS30T
No inner box information is available for this product.
No outer box information is available for this product.
